Isolated input/output channels
The module operates at a 24VDC safe voltage and 14 independent input/output channels form a one-to-one loop. Control of each channel loop can be passed The software is configured with an independent transient surge protection circuit per channel. 1 channel standard resistive load current is 30A and supports controlled socket and air conditioning power supply; 8-channel standard resistive load current is 16A, 3-channel standard resistive load current is 10A, 2-channel 1NO/1NC standard resistive load current is 12A, available In the lighting circuit, lighting power control, curtain control, air conditioning control, etc.; 485 port is used for Gree brand air conditioning control.
The module can be centrally managed by MarsWindow, and the data of each channel in the module can be uploaded to the HRMS management system for module data management and Analysis of the state. Scene management is to preset the time through the MarsWindow module, and then open the corresponding scene mode to achieve all or part of it. Part of the module loop.
DIN rail mounting
Flexible installation and application of “modular” equipment In real-world environments, the system is mounted on standard 35mm DIN rails for easy installation and maintenance. For the user to use.
S-Net bus modular design
The module is designed for pure hardware architecture of MCU (micro control unit). It has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the dedicated bus S-Net to ensure the stability and reliability of data transmission. Each module has a corresponding physical address that can be dialed via DIP The coder performs the address setting of the module to ensure that each module can operate correctly, and can accurately receive and execute the commands transmitted from the S-Net for Connect via mobile or iPad control and SCHIDERON bus panel.
Control channel : 14 relay output channels, 6 indicator output channels Channel : 120-240 VAC 50/60Hz Placeholder : 15DIN module space
Radiat : 12.72 BTU/hr NET protocol : S-Net，RS485 Consumption : 24VDC / 300 mA DC
Terminals : PA66 Weight : 645g Temperature : 0 ℃ ~40 ℃
Storage TEM : 0 ℃ ~40 ℃ Material : ABS Humidity : 10%~90% RH
Installation : DIN rail mounting Size : 270*93*63.5mm

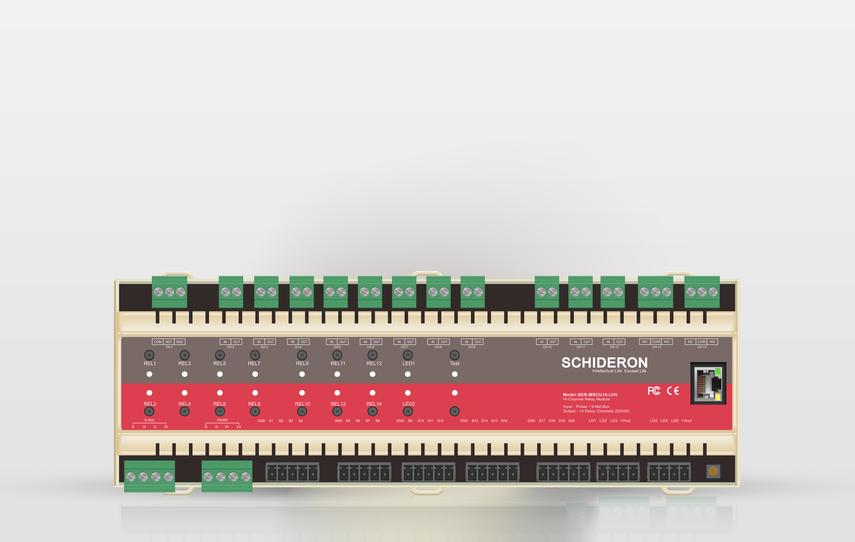

SDR-MRCU14-LAN is a module with relay output dry contact input and LAN interface, power input 120-240VAC, 14 independent inputs In/Out isolation channels allow manual switching of the circuit without additional bus devices and software. One of the standard resistive load currents is 30A, support controlled socket and air conditioning power supply; 8 channel standard resistive load current is 16A, 3-channel standard resistive load current is 10A, 2 channels 1NO/1NC standard resistive load current is 12A, can be used for lighting circuit, lighting power control, curtain control, air conditioning control, etc.; 485 port is used Yu Gree brand air conditioning control. Loop independent control, pre-edit scene control and scene timing control can be performed by MarsWindow debugging software. Module data can be uploaded to HRMS tube. The system performs module status management and statistical analysis of data, and the entire data transmission and device control conform to the latest industrial industry standards.
