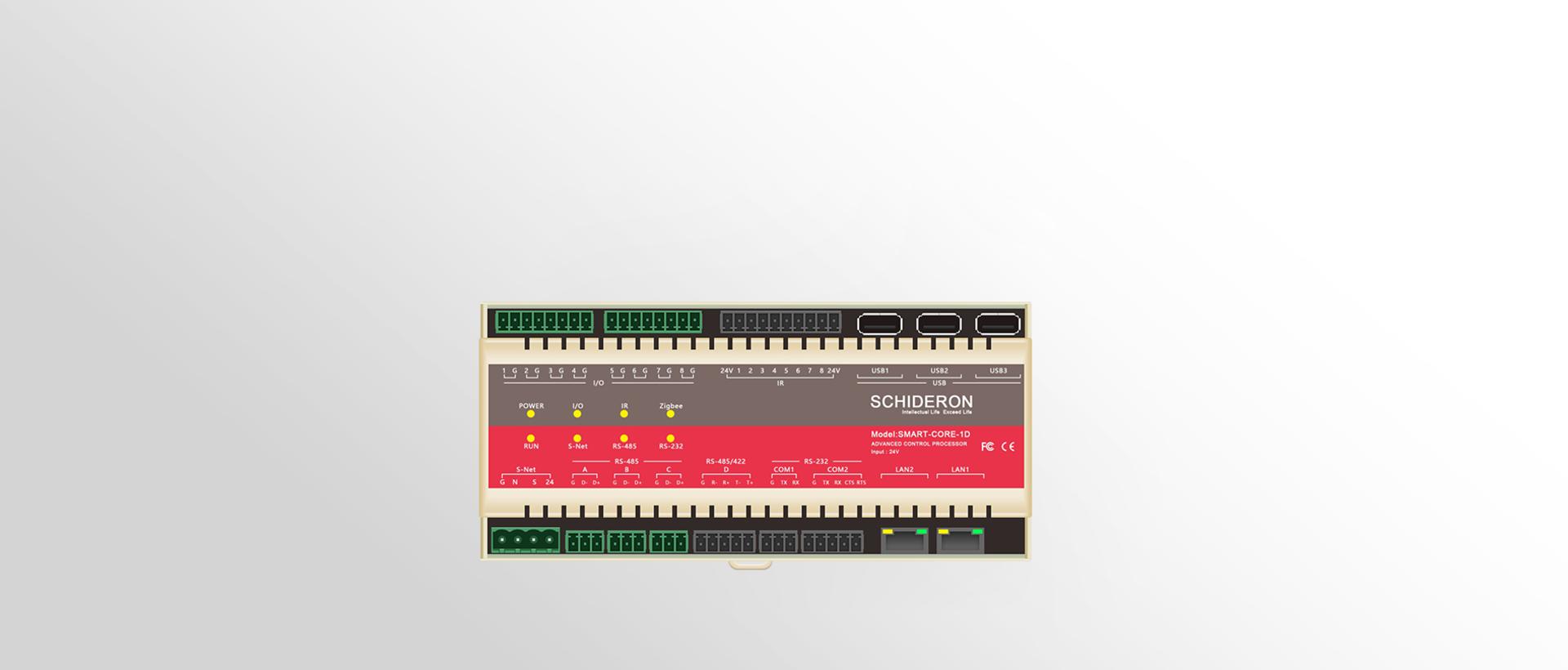

The SMART-CORE-1D is a DIN-rail mounted intelligent central control system developed by SCHIDERON that can be applied to any modern smart home and business intelligence control central control system. The entire system can be customized and integrated with different brands, different types, and different models of products to make the operation more user-friendly, more environmentally friendly, and more efficient! SMART-CORE-1D is used in smart meeting rooms, business intelligence lighting systems, smart home systems and room management systems. Through the SMART-CORE-1D, all modules of the entire system can be connected to Internet communications, and unified management is performed in the cloud based on the Internet. Through the UControl mobile app of mobile terminals (devices supporting Android and IOS operating systems) for remote docking system control. The SMART-CORE-1D can also be custom-programmable through S-Net to upload data from business intelligence lighting systems, smart home systems and room management systems to the corresponding smart centralized management and management systems for device state management and statistical data analysis. The entire data transmission and equipment control comply with the latest industrial industry standards. Both the scene management and scene timing settings of the system can be operated remotely through the UControl Mobile APP, which is simple and convenient and meets the requirements of the current physical networking system.


Operating system

The SMART-CORE-1D operating system is a Linux system. This operating system enables faster and more stable processing; the continuous power service life can be up to 10 years.

Centralized control of APP

SCHIDERON UControl is an IP-based control system that takes advantage of new possibilities for control and monitoring via LANs, WAN integration systems and the Internet. And this APP supports more control methods, your world is in your hands! You can control connected devices in your home or workplace from your iPhone, iPad, and Android devices anytime, anywhere. Let you safely monitor and control the entire home or business.

Data management

Upload all data (including loop status, energy consumption information, etc.) of the intelligent lighting system, smart home system and room management system access module to the intelligent centralized management system. This can use powerful background processing capabilities to process resource data and improve processing efficiency. In particular, it is applied to enterprise management, school classrooms, conference studios, and other occasions as aggregation nodes for data transmission.

Watchdog function

The device has a hardware and software watchdog function, and the watchdog command has the highest priority in the interruption of the program. Regularly check the internal conditions of the chip, and send an automatic reset signal to the chip in the event of an error to avoid the program from entering an infinite loop.

Ir learning control

The device has an IR learning port. After connecting to the IR receiver, it reads the IR command code sent by a specific appliance, decodes the command and stores it as a system action scene code, which is used for the invocation of a specific scene. Through the PC-side control software, IR command codes of various black-and-white household appliances are combined to set a specific scene. After configuring the iPad/iPhone/touch screen, etc., send the corresponding infrared code to the relevant home appliances through the IR send port to complete scene control. Multiple infrared code transmissions can be performed centrally or as delay tracking to make the scene more comfortable.

Programmable customization

To increase scalability, DIN100-CORE can provide high-speed, multi-tasking systems. Programmable and customized architecture allows programmers to independently develop and run device-specific programs such as lighting, HVAC, security, audio and video. System upgrade through remote network operation greatly improves customization efficiency.

Communication transmission

S-Net communication mode and TCP/IP communication mode conversion device. It serves as an intermediary device for intelligent centralized control management systems and other adjustment control devices. The device can be set up and configured through PC control software.

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

Overcurrent protection

The device has over-current protection. The proprietary current protection module allows the device to protect the device from burnout by automatically shutting off the power when the current exceeds the set current, thereby extending the life of the device.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.


Agreement type : S-Net Placeholder : 10P DIN module space(180mm) System : Linux

CPU : Single core CPU Voltage : 24VDC Temperature : 0°C to 70°C

RAM : 512M Installation : DIN rail mounting Size : 180*83.5*63.7(mm)

Parameter file - control module series

SMART-CORE-1D(simplified Chinese) 2021 / 09 / 13 2.60M

SMART-CORE-1D(traditional Chinese) 2021 / 09 / 13 1.12M
