FEATURES

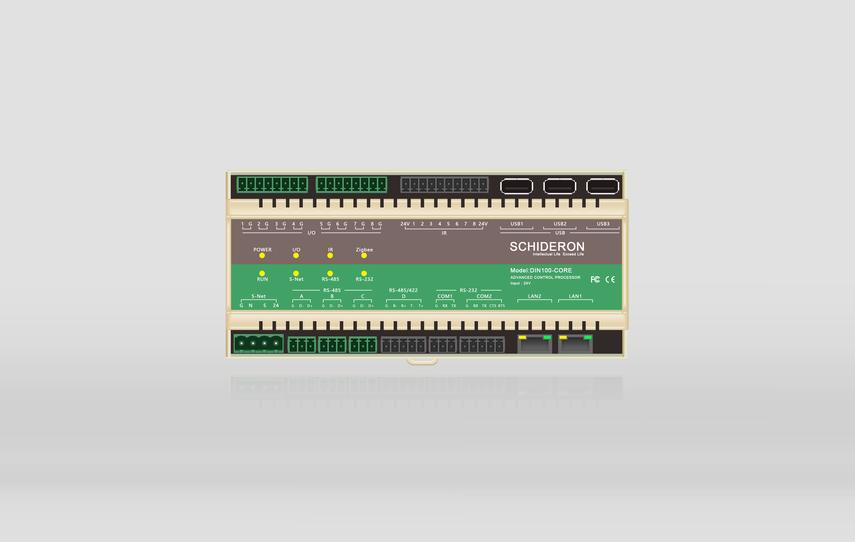

DIN100-CORE is a DIN-rail mounted intelligent central control system developed by SCHIDERON that can be applied to any central control system of smart home automation. The entire system can be customized and integrated with different brands, different types, and different models of products to make the operation more user-friendly, more environmentally friendly, and more efficient!

DETAILS

Centralized control of APP

SCHIDERON UControl is an IP-based control system that takes advantage of new possibilities for control and monitoring via LANs, WAN integration systems and the Internet. And this APP supports more control methods, your world is in your hands! You can control connected devices in your home or workplace from your iPhone, iPad, and Android devices anytime, anywhere. Let you safely monitor and control the entire home or business.

Data management

Upload all data (including loop status, energy consumption information, etc.) of the access module of the intelligent lighting system, smart home system and room management system to the intelligent centralized control management system. This can use powerful background processing capabilities to process resource data and improve processing efficiency. Especially applied to enterprise management, school classrooms, conference studios and other occasions as the convergence node for data transmission.

Watchdog function

The device has a hardware and software watchdog function, and the watchdog command has the highest priority in the interruption of the program. Regularly check the internal conditions of the chip, and send an automatic reset signal to the chip in the event of an error to avoid the program from entering an infinite loop.

Ir learning control

The device has an IR learning port. After connecting to the IR receiver, it reads the IR command code sent by a specific appliance, decodes the command and stores it as a system action scene code, which is used for the invocation of a specific scene. Through the PC-side control software, IR command codes of various black-and-white household appliances are combined to set a specific scene. After configuring the iPad/iPhone/touch screen, etc., send the corresponding infrared code to the relevant home appliances through the IR send port to complete scene control. Multiple infrared code transmissions can be performed centrally or as delay tracking to make the scene more comfortable.

Programmable customization

To increase scalability, DIN100-CORE can provide high-speed, multi-tasking systems. Programmable and customized architecture allows programmers to independently develop and run device-specific programs such as lighting, HVAC, security, audio and video. System upgrade through remote network operation greatly improves customization efficiency.

Communication transmission

S-Net communication mode and TCP/IP communication mode conversion device. As an intermediary device of intelligent centralized control management system and other regulating control devices. The device can be set up and configured through PC control software.

Centralized control

SCHIDERON UControl is an IP-based control system that takes advantage of new possibilities for control and monitoring via LANs, WAN integration systems and the Internet. And this APP supports more control methods, your world is in your hands! You can control connected devices in your home or workplace from your iPhone, iPad, and Android devices anytime, anywhere. Let you safely monitor and control the entire home or business.

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The device is designed for the mcu pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low, and the task processing is timely. The module communicates via the dedicated bus S-Net to ensure the stability and reliability of data transmission.

SPEC

Agreement type : S-Net Placeholder : 10P DIN module space(180mm) System : Linux

CPU : 1G Voltage : 24VDC Temperature : 0°C to 70°C

RAM : 1G Installation : DIN rail mounting Size : 180*83.5*63.7(mm)
