FEATURES

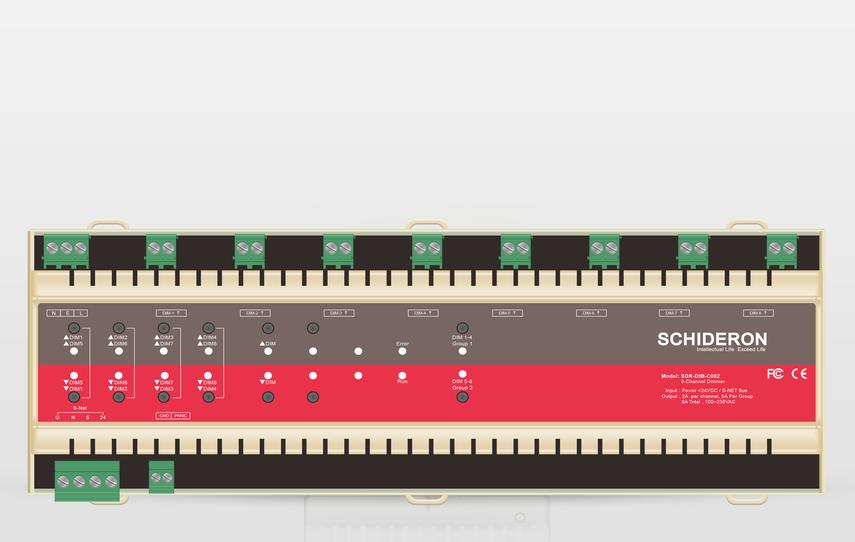

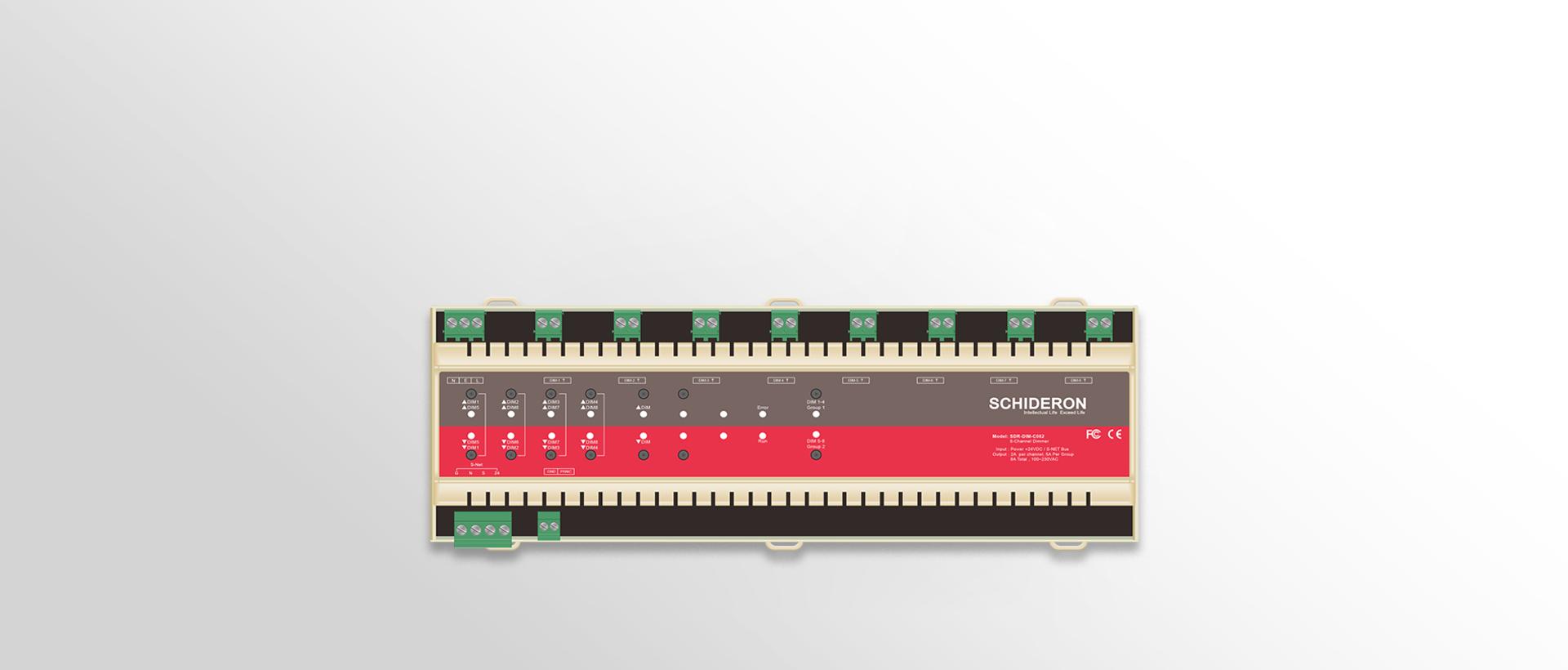

8-way 2A thyristor dimming module (SDR-DIM-C08/2) is used for front-phase low-voltage electronic ELV, incandescent INC, neon/cold cathode tube Neon/CC, electromagnetic low-voltage light MLV and other lighting fixtures Lead edge phase dimming control. The module has load current detection, and each channel data can be uploaded to the work center for graphical statistics. At the same time, it guarantees to cut off the power supply in case of over-current and prevent malfunction. The maximum load current of a single channel is 2A, and the maximum current capacity of all circuits of the module is 5A. The independent lighting control, pre-editing scene control and scene timing control can be performed through the intelligent lighting management system (LMS) visualization. The module data can be uploaded to the intelligent lighting management system (LMS) for device status management and data statistical analysis, and the entire data transmission and equipment Control meets the latest industrial industry standards.

DETAILS

Fire contact

The device has an Override emergency dry contact port (PANIC - GND) for fire emergency applications. When receiving the fire signal from the fire control center, the device will preferentially open the first loop as an emergency lighting circuit according to the signal.

Isolated input/output channels

1 channel input, 4 channel output. 8 channels independently isolated input and output. The control of each channel loop can be configured via software. The maximum load current of a single channel is 3A, and the maximum total load current of all circuits of the device is 5A.

Centralized control

The module can be managed visually and centrally through SCHIDERON Intelligent Lighting Management System (LMS). The data of each channel in the module can be uploaded into the intelligent lighting management system for module data management and status analysis. Scene management is to pre-set the time for the module through the LMS, and then open the corresponding scene mode, to open all or part of the module loop.

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.

Relay cutoff and output limit

The module comes with a relay in each circuit to ensure that the circuit can be completely shut down. The minimum and maximum brightness can be set by software.

Zero crossing detection

The module has a single-phase zero-crossing detection circuit. The proprietary zero-crossing filter technology makes each opening/closing action of the module relay at the zero-crossing point of the frequency, thereby prolonging the service life of the module, reducing the flickering of the lighting fixture, and compensating the circuit. Voltage and frequency fluctuations.

SPEC

Agreement type : S-Net Control channel : 2.25A per current Channel : 120~240VAC

Placeholder : 15P DIN module space Consumption : 24VDC / 150 mA Terminals : PA66

Weight : 1205.0g Temperature : 32°to 104°F Storage TEM : 0℃~40℃

Material : ABS Humidity : 10%~90% RH Installation : DIN rail mounting

Size : 270*93*63.5(mm)

Module Installation Instructions - Control Module Series

SDR-DIM-C08/2- Simplified 2019 / 05 / 28 415.78K

SDR-DIM-C08/2- Traditional 2019 / 05 / 28 359.16K

Parameter file - control module series

SDR-DIM-C08/2(Simplified Chinese) 2018 / 06 / 15 1.20M

SDR-DIM-C08/2(Traditional Chinese) 2018 / 07 / 19 1.27M
