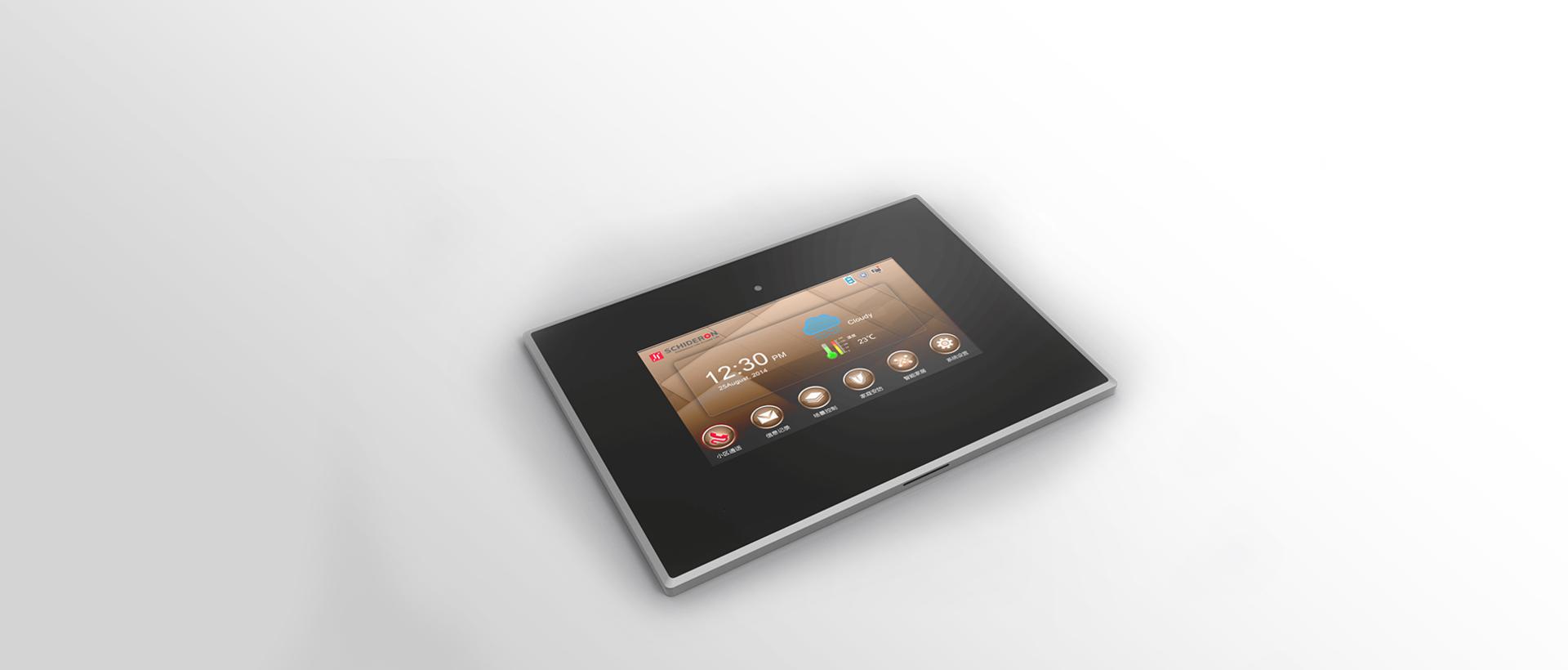

DDP-703NC-XP is a wall mounted color hands-free video intercom with multiple functions. A 7-inch LCD display has a resolution of 1024 x 600. With gold-plated G+G glass capacitor touch, video encoding and decoding adopts h. 264, which can support hd two-way video intercom. The chip adopts SCHIDERON's X1S series CPU chip and WINCE 5.0 embedded system architecture. It has the advantages of fast operation, high stability and low overall power consumption, and supports the online upgrade of intercom software. Comprehensive security function -- the system comes with 16 independent defense areas, which can be connected with intrusion, gas, smoke and other sensor devices. When a resident is not at home, he/she will automatically save his/her visitor photos for the tenant to view at any time. An s-net interface seamlessly connects with the SCHIDERON smart home host and module, and the warm home scene only needs one key to activate.


Video intercom

· Wall machine calls into the speaker, unit door machine calls into the speaker, small door machine calls into the speaker, management center calls in / two-way talk, household communication two-way voice talk, video talk, remote unlock

Home Security

· Emergency help function · One-touch arming and disarming away from home · Alarm information sent to the management center · Holding code alarm · Custom private unlock password, security password and hijack password

Alarm Type

· Emergency help function · One-button arming from home · Alarm information is sent to the management center · Hold code alarm · Custom private unlock password, security password and hold password

Smart Home

· Scene control · Air conditioning control · Lighting control · Curtain control

Other function

· Community information, private information push · Three languages (Simplified / Traditional / English)


Touch screen : Capacitive Resolution : 1024*600 System : WinCE

NET protocol : TCP/IP Bus : S-Net CPU : X1S

Display : 7" TFT LCD (color) Power : DC 12V Working current : ≤280mA

Current : ≤200mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : Fire retardant ABS Webcam : 300,000 pixels (optional) Ringing : Electronic bell ≥70dB

Frequency : 1G Hz RAM : 128M DDR-Ⅲ ROM : 16M

Installation : Embedded Thickness : 7mm Size : 248*181*23(mm)

Parameter file - building intercom

DDP-703NC-XP(Simplified Chinese) 2018 / 06 / 15 3.68M

DDT-703NC-XP(Traditional Chinese) 2018 / 07 / 19 3.64M

Installation instructions - visual intercom

DDP-703NC-Simplified 2018 / 08 / 28 1006.06K

DDP-703NC-Traditional 2018 / 08 / 28 590.66K
