Convenient firmware upgrade

Support USB online firmware upgrade and GUI graphical user interface upgrade.

Automatic identification of multiple resolutions

Support 1080P, 4Kx2K resolution video access automatic identification.

Rich signal port

6x3 HDMI port, 6x6 IR port, 6x6 audio port, 6 HDBaseT output ports (PoC support).

HDBaseT transmission standard

Support HDBaseT transmission standard, support PoC function, with long-distance transmission, high transmission rate and cable economy advantage over HDMI.

Long-distance transmission capability

Thanks to the blessing of the HDBaseT transmission standard, the maximum distance of a single CAT5e HDBaseT 1080P signal is 70m, and the maximum distance of a 4Kx2K signal is 40m.

Flexible audio processing

The audio port can be used to select external audio or embedded audio.

Powerful compatibility

Support HDMI 1.4, support 4Kx2K, and support 3D signals, compatible with HDCP 1.4 standard.

Diverse and flexible control methods

Support button panel control, RS232 control protocol, two-way infrared transmission and reception, TCP/IP computer GUI graphics management.


Serial port : 9 - RS232 Transmission standard : HDBaseT Infrared control : IR Receiver / Extended

Hot plug : Support HDBaseT, HDMI Protocol processing : EDID management HDCP : automatic / manual

Agreement type : TCP/IP Resolution : 1080P/4Kx2K/Auto Consumption : 80W maximum

Power : DC24V 2.5A, power-off memory Weight : 5.3Kg Temperature : -10 ~ +40°C

Operating HUM : 10% ~ 90% Material : metal shell Carton size : 437*380*87.8mm

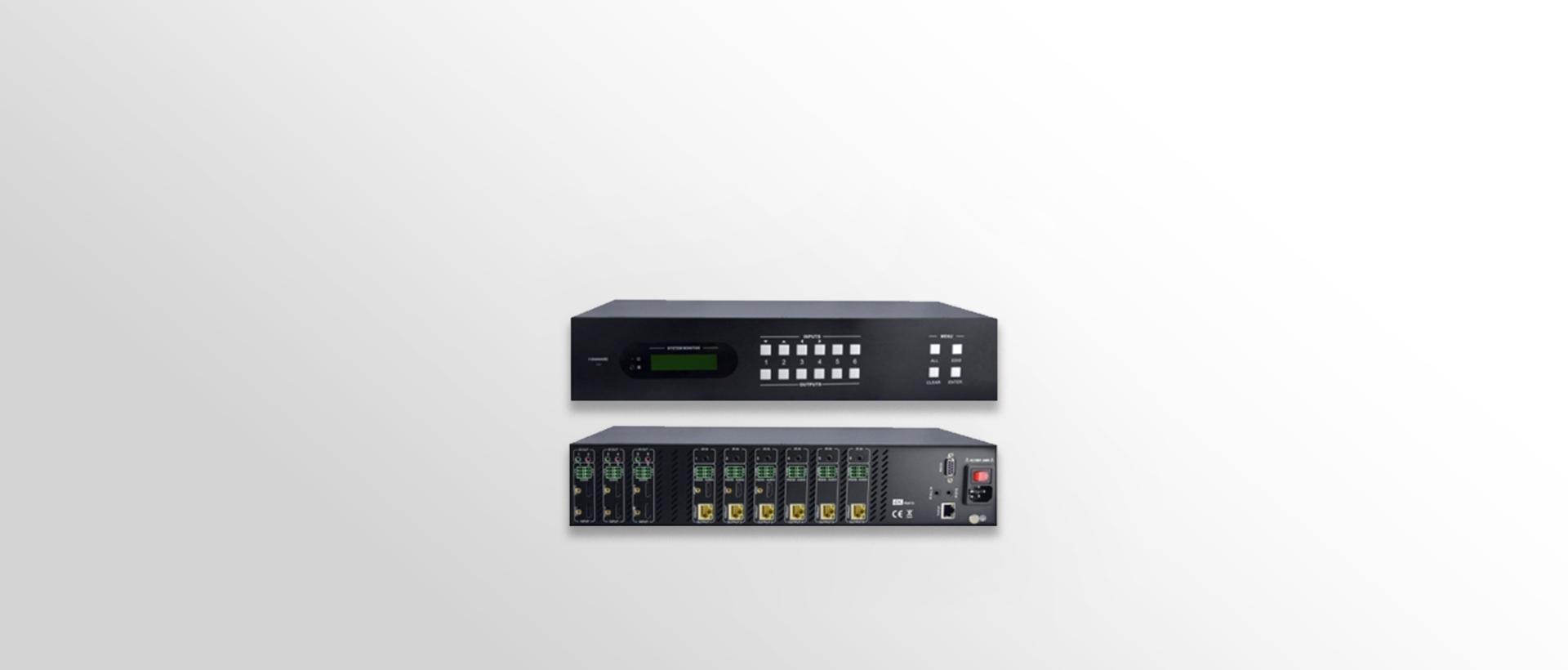

This product is a matrix switcher with integrated HDBaseT technology. The input signals supported are: 6 HDMI inputs, 6 audio inputs, and 6 IR inputs. Supported output signals are: 6 HDBaseT outputs, 3 local HDMI loops, 6 IR signals, and 6 audio outputs. The video signal resolution supports 4Kx2K, and the audio input and output ports can select embedded audio or external audio by command. This product supports EDID learning and manual control management functions, and can realize bidirectional IR and RS232 communication control with the remote end. Product control methods are flexible and flexible, and can be controlled by supporting remote control, front panel button control, infrared control, RS232 serial port control, GUI graphical user interface control.

Traditional Matrix - Presentation Switcher

SDR-UHBT66-N 4K T HDBaseT Matrix Switcher 2019 / 04 / 15 1.82M
