FEATURES

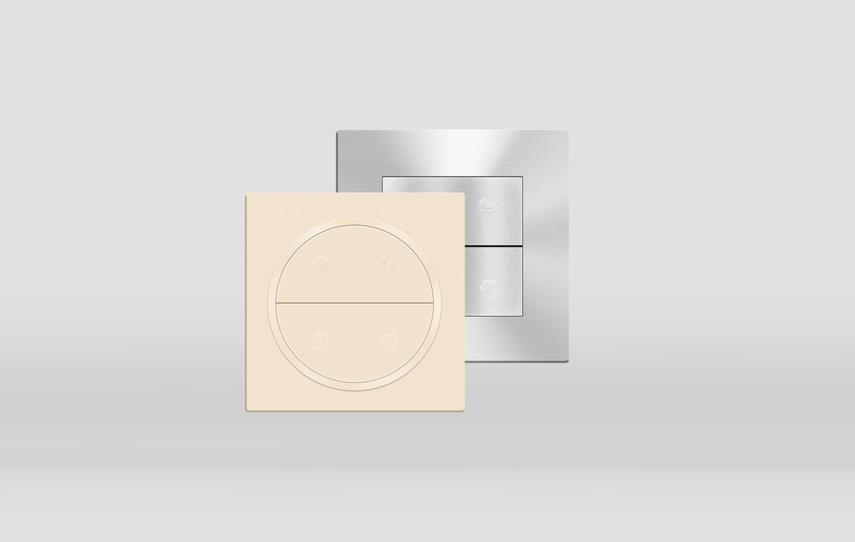

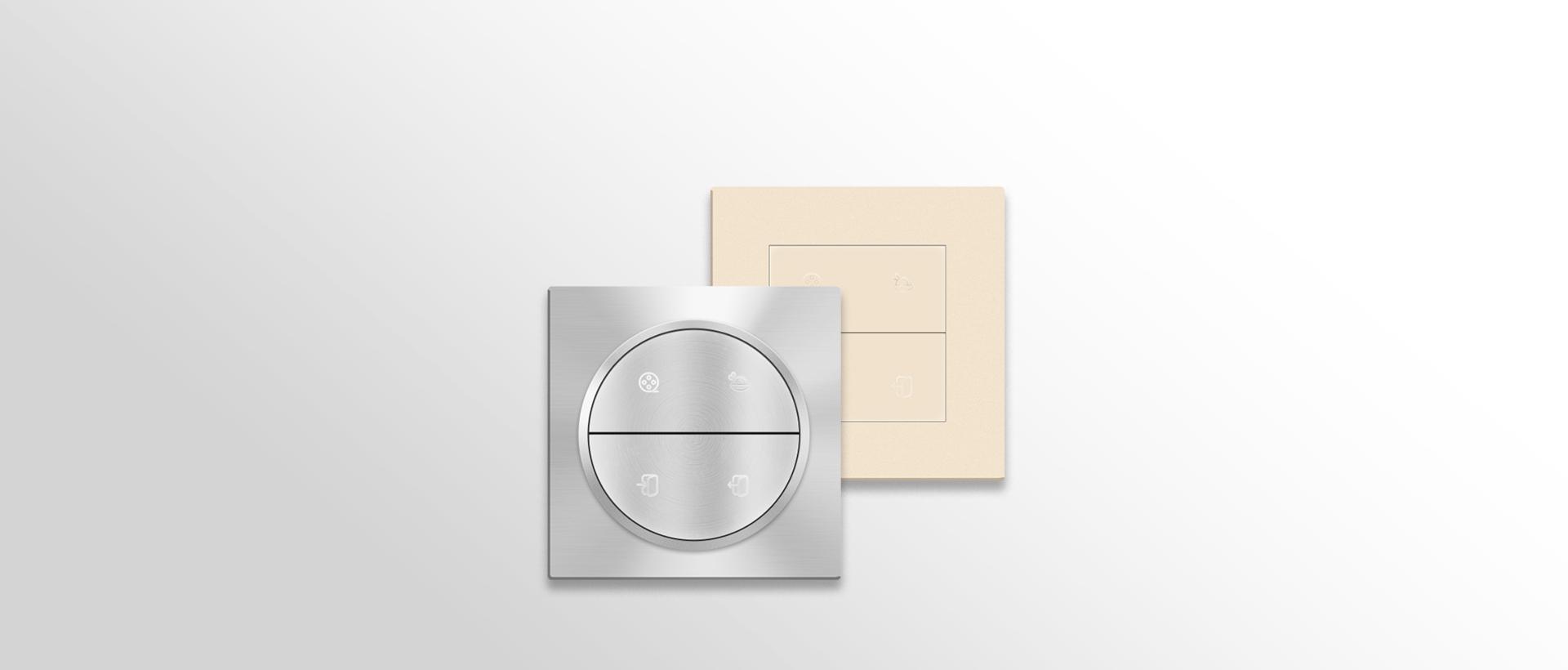

SDR-REL4-WIFI-10 is a Wi-Fi type high-power intelligent switch panel developed by SCHIDERON, which can be applied to lighting, curtains and scene control in the field of modern smart home. It adopts an integrated custom design, the appearance is simple and noble, and it has a sense of technology. The buttons can be engraved and light-transparent to display real-time control status. The panel has configurable smart buttons that can be configured by dedicated programming debug software. The panel works in the 2.4GHz band Wi-Fi network environment, with independent working ability, with the central control host system provided by SCHIDERON, and can also support the UControl APP remote control panel through mobile terminals (devices supporting Android and IOS operating systems). The panel can be easily installed in the 86-type bottom box. The power supply is only obtained from the commercial AC 220V. The built-in 4 channel relays allow the maximum current to be 10A for the resistive load and 5A for the inductive load.

DETAILS

Three network working modes

The built-in WiFi module of the panel supports three network working modes, AP mode, STA mode and AP+STA hybrid mode. The working mode can be changed by logging in the parameter configuration webpage through a web browser.

Online upgrade

The panel supports online firmware upgrades, eliminating the need for cumbersome device removal and simple and fast firmware upgrades over a wireless network.

Diversified control methods

The panel supports direct loop control, and can also support configuration of custom scenes, through personalized scene control to meet a variety of situations. The custom scene data configuration uses the SCHIDERON special programming debugging software MarsWindow.

Standalone/networked

The panel integrates independent relays of each channel, directly supports the local button control loop, and accesses the central control intelligent system through the UControl APP remote control panel loop channel of the mobile terminal (device supporting Android and IOS operating system).

Status Indicator

The button backlight indicates the loop state, the light transmission supports the font light transmission effect, and the light transmission brightness can be adjusted.

Energy saving mode

The panel has a standby energy-saving mode, and the button backlight indicator actively saves energy by distance sensing. This design meets the requirements of low-carbon environmental protection.

Simple and universal installation

The panel is mounted in a standard 86-bottom box wall to make the panels more tidy.

SPEC

Network-mode : AP/STA/AP+STA Wireless standard : WiFi@2.4GHz Border color : Silver / Gold

Border materials : Aluminum alloy keypad : plastic Consumption : Standby <1W

Power : 220VAC Temperature : -20~85℃ Operating HUM : 5%~95% RH

Storage TEM : -40~125℃ Humidity : 5%~95% RH Installation : Standard 86 bottom box

Size : 86*86*39.5mm

Parameter file - smart power panel

SDR-REL4-WIFI-10-Simplified 2019 / 07 / 11 1.99M

SDR-REL4-WIFI-10-Traditional 2019 / 07 / 11 2.66M
