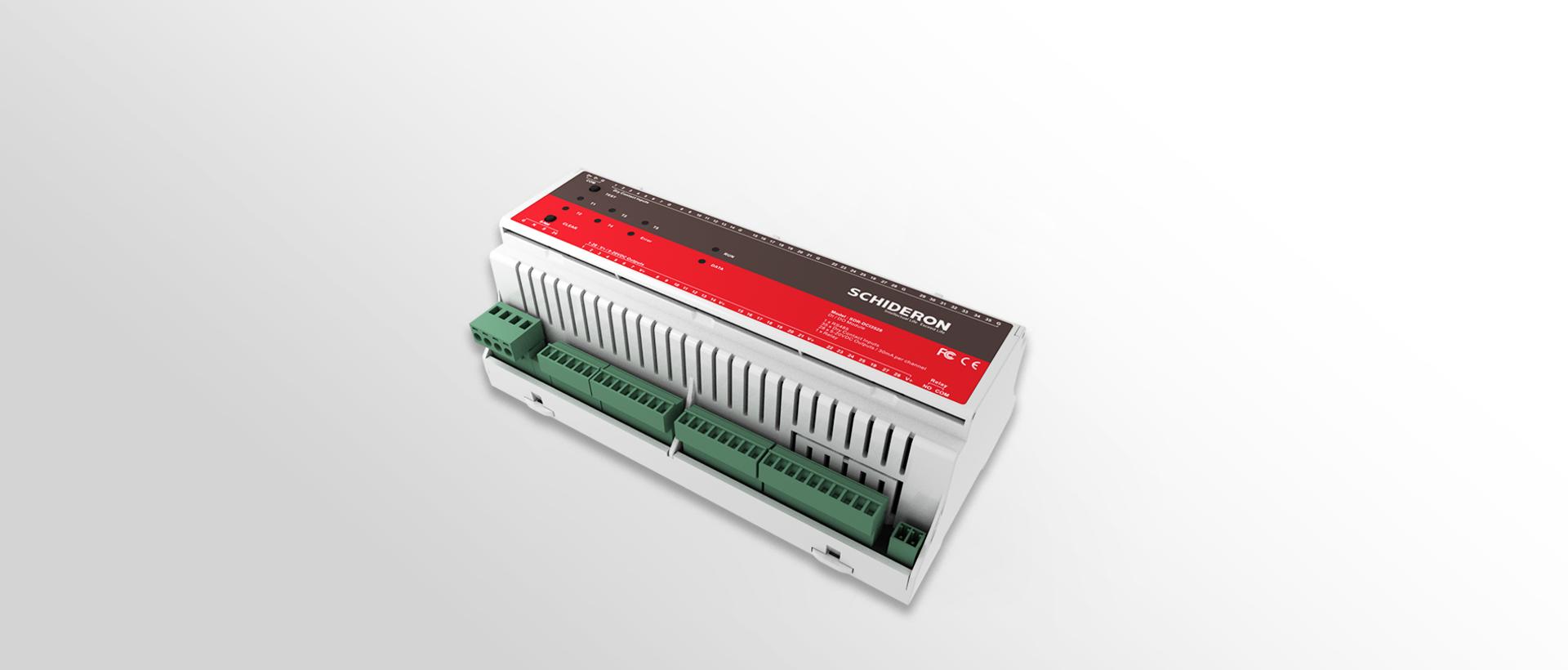

The HRMS-DCI3528 is a 35-way dry contact input module that internally generates signal voltages for connection to multiple conventional control panels, passive contacts, or active contacts, as well as multiple LED indicators. The data can be uploaded to the Intelligent Lighting System (LMS). The module is mounted on a standard DIN rail, and the entire data transmission and equipment installation comply with the latest industry standards.


DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.

Multifunction IO channel

SDR-DCI3528 is a diversified and compact module that supports third-party switch panel access and debugging as a bus program, supports up to one active 5~24VDC input, 35 inputs are dry contact inputs, and 28 output indicator outputs The output voltage is in the range of 5~20VDC, and the output current is more than 100mA. The total output is about 400mA. Universal third-party button input ports can be used for a variety of scene applications, functioning in custom style locations such as homes, offices, and hotel rooms that require a large number of buttons and indicators.

High compatibility

The module supports various types of third-party all-in-one hotel house numbers, doorbells, card panels, and sensor access. Simple debugging can complete the functions of sweeping/do not disturb/energy saving/power taking.


Control channel : 28 output , 1 DC relay output Channel : 1 active input , 35 passive input Placeholder :

Radiat : 7.1BTU/hr NET protocol : S-Net Temperature : 0°to 40°C

Storage TEM : 0°to 40°C Material : Environmental protection fire ABS, UL94-V0, temperature resistance Humidity : 10% to 90%

Size : 180*87*63(mm)

Parameter file - hotel module series

HRMS-DCI3528(Simplified Chinese) 2018 / 06 / 15 1.19M

HRMS-DCI3528(Traditional Chinese) 2018 / 07 / 19 1.24M

Module Installation Instructions - Hotel Module Series

HRMS-DCI3528-Simplified 2019 / 05 / 28 1.21M

HRMS-DCI3528-Traditional 2019 / 05 / 28 1.25M
