FEATURES

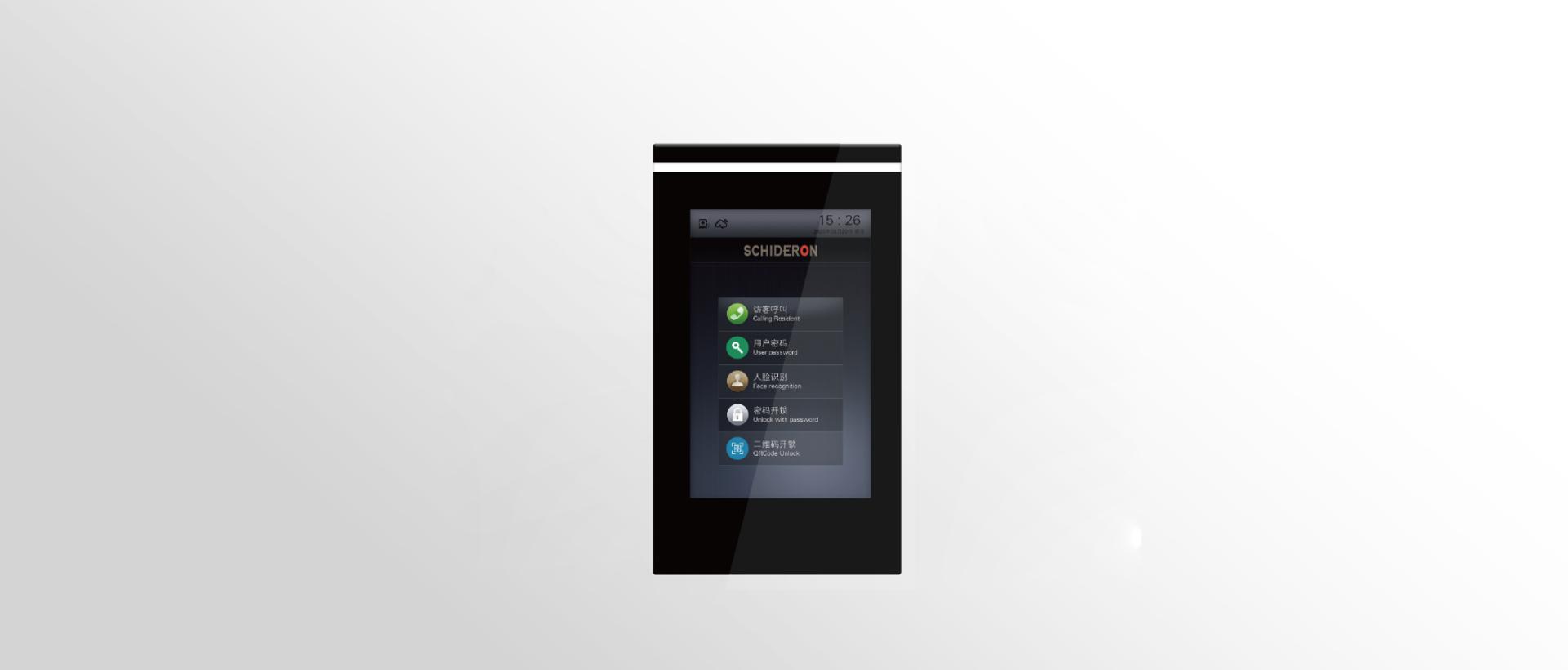

The DDT-1060-ZH is a 10.1-inch capacitive touchscreen operated color video intercom unit door station with an LCD display resolution of up to 1280×800. It adopts high-definition digital camera, which has clear video quality. The new noise suppression technology can obtain high-restoration sound quality effects in different environments. This machine adopts SCHIDERON X7 series CPU chip, Android system architecture, CPU frequency up to 1.2GHZ, memory is 1G DDR-II. It has the advantages of fast operation speed, high intercom audio and video quality, low power consumption of the overall chip, and high operation stability to meet the needs of future upgrades. The interface operation instructions are simple and straightforward, making it easier for users to use. Support public password unlocking, user private password unlocking, IC card access control card unlocking, visitor message photos, call management center and other functions. The overall performance and technical indicators are at the leading level in the industry

DETAILS

SPEC

System : Android NET protocol : TCP / IP Bus : S-Net

CPU : X7 Power : DC 12V Working current : ≤180mA

Current : ≤150mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : ABS+Aluminum Webcam : 1.3 million pixels Ringing : Bell≥70dB

Frequency : 1.2G Hz RAM : 1G DDR-II ROM : 8GB

Installation : Embedded Thickness : 8mm Size : 339*190*28.2（mm）

Dust proof : IP55
