FEATURES

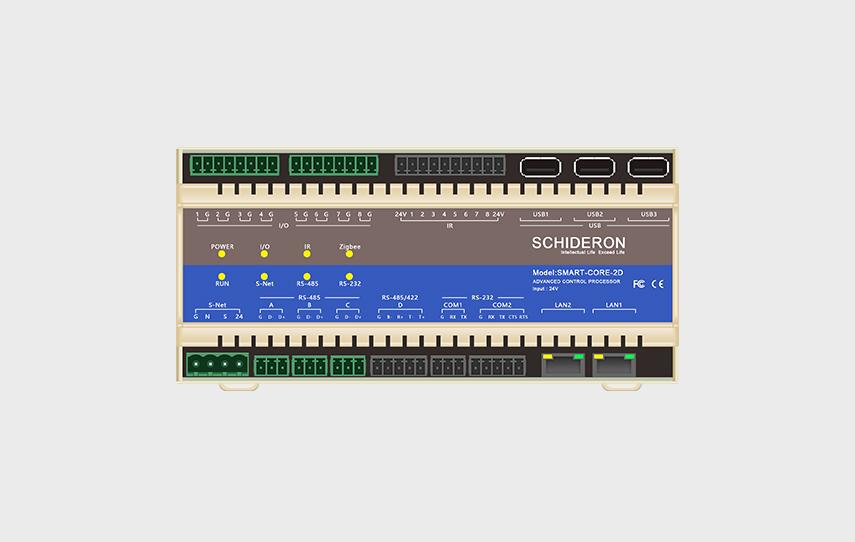

SMART-CORE-2D is a DIN rail mounted intelligent central control system developed by SCHIDERON, which can be applied to Any modern smart home and business intelligence control central control system. The whole system can combine different brands, different types, The products of the same model are customized and integrated management and control, making the operation more humane, more environmentally friendly, and more efficient!

DETAILS

Operating system

SMART-CORE-2D operating system is Linux system, this operation The system makes work processing speed faster and more stable; working life without electricity Up to 10 years.

Centralized control of APP

SCHIDERON UControl is an IP-based control system System, this system has played a huge new possibility, through LAN, The integrated domain network system and the Internet carry out control and monitoring. And this APP supports more control methods, your world is in your control! You can Anytime, anywhere via iPhone®, iPad® and Android™ device to control any thing in the home or workplace oo. Let you safely monitor and control the entire residence or business.

Data management

Upload smart lighting system, smart home system and room management All data of the system access module (including loop status, energy consumption information Information, etc.) to the intelligent centralized control management system. This can take advantage of a powerful background Processing ability to process resource data and improve processing efficiency. especially It is applied to business management, school classrooms, conference studios and other occasions As a sink node for data transmission.

Watchdog function

The device has a hardware and software watchdog function, the watchdog command is in the program The interrupt has the highest priority. Check the situation inside the chip regularly Situation, once an error occurs, an automatic reset signal is sent to the chip to avoid No program enters an endless loop.

Ir learning control

The device has an IR learning port, when connected to the IR receiver, read Use the IR command code sent by the electrical appliance, and then decode the command The code is stored as a system action scene code, which is used for calling specific scenes. through Combine the IR instruction codes of a variety of black and white home appliances through PC control software, Set to a specific scene. Configure the scene to iPad/iPhone/touch screen, etc. Then, send the corresponding infrared code to the relevant household appliances through the IR sending port, and Into scene control. Multiple infrared codes can be sent centrally or set To delay the execution of tracking, make scene changes more comfortable.

Programmable customization

To increase scalability, SMART-CORE-2D can provide high-speed, Multitasking system. Programmable customized architecture allows programmers to independently open Develop and run lighting, HVAC, security, audio and video equipment specific processes sequence. System upgrade through remote network operation, which greatly improves Improved customized efficiency.

Communication transmission

S-Net communication mode and TCP/IP communication mode conversion device Set. As an intelligent centralized control management system and other adjustment control devices Intermediary device. The device can be set up through the PC control software Set up and configure.

DIN rail mounting

The flexible installation and application of

S-Net bus modular design

The device is designed for ARM pure hardware architecture and has local data processing Management and channel control, the overall power consumption of the module is low, and task processing is timely. The module communicates via the dedicated bus S-Net to ensure data transmission Stability, reliability.

SPEC

Agreement type : S-Net FLASH : Capacity 4G System : Linux

CPU : 4 core 1G Ethernet port : 10/100Mbps, the maximum number of bytes of the data packet is 492Bytes SD : Micro Sd card slot, can expand the data storage capacity of the smart gateway

Terminals : PA66 Temperature : 0℃~72℃(32℉~161.6℉) RAM : 1G

Installation : DIN rail installation Size : 180*83.3*63.7(mm)

Parameter file-Edge control series

SMART-CORE-2D parameters (Traditional) 2020 / 08 / 06 2.28M

SMART-CORE-2D parameters (simplified) 2020 / 08 / 06 1.62M

Installation Instructions Edge Control Series

SMART-CORE-2D Installation Instructions (Simplified) 2020 / 08 / 07 746.49K

SMART-CORE-2D-(Traditional) 2020 / 08 / 07 1.25M
