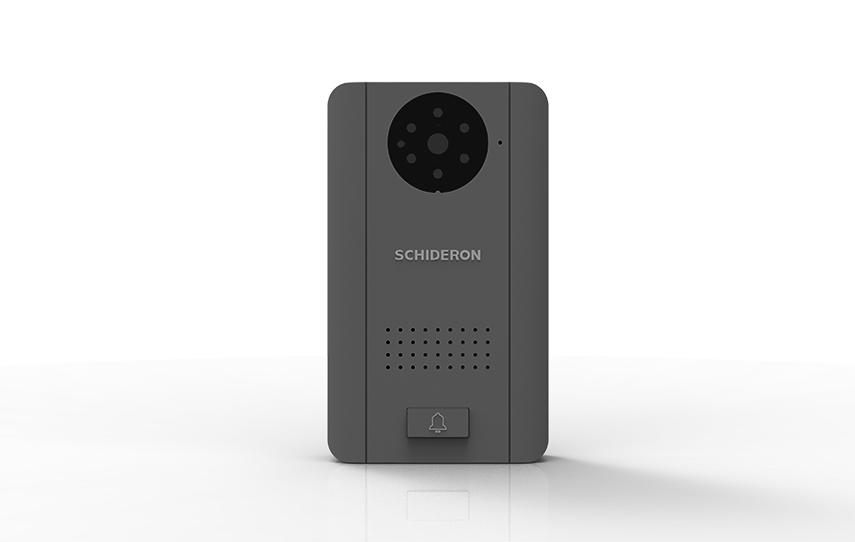

DDT-011 adopts SCHIDERON X1S series CPU chip, the CPU frequency is 720MHZ, and the memory is DDR3/256M. It has the advantages of fast operation speed, high quality of intercom audio and video, low power consumption of the whole chip and high running stability to meet the needs of future upgrades. High-definition digital camera with clear camera quality. The new noise suppression technology can achieve high-reduced sound quality in different environments. The appearance of the craft is high quality and generous and high-grade. One-click call indoor extension, user-friendly voice prompts, support the removal and removal of the indoor unit by swiping the card, so that the user is easy to use. Overall performance and technical indicators are at the leading level in the industry.


Main function introduction

·Photography function · Call indoor unit to achieve secondary confirmation / intercom ·Indoor monitoring, management center monitoring ·High-definition camera, night LED fill light · Built-in IC access control module, support for card unlocking · Authorized card issuance through the management center ·After pressing the doorbell button for 3 seconds, the card can be disarmed and disarmed.


System : WinCE NET protocol : TCP / IP CPU : X1S

Power : DC 12V Working current : ≤180mA Current : ≤150mA

Temperature : -10℃~+50 ℃ Operating HUM : 20%~85% Material : ABS

Webcam : 720P Ringing : Bell≥70dB Frequency : 720Mhz

RAM : 256M DDR-Ⅲ ROM : 4GB Nand Flash Installation : Wall-mounted

Thickness : 23mm Size : 90*153*23(mm) Dust proof : IP55

Parameter file - outdoor door intercom

DDT-011-HD-X1S(Simplified Chinese) 2018 / 06 / 15 3.76M

DDT-011-HD-X1S(Traditional Chinese) 2018 / 07 / 19 3.69M

Installation instructions - visual intercom

DDT-011HD-Simplified 2019 / 06 / 03 427.54K

DDT-011HD-Traditional 2019 / 06 / 03 289.27K
