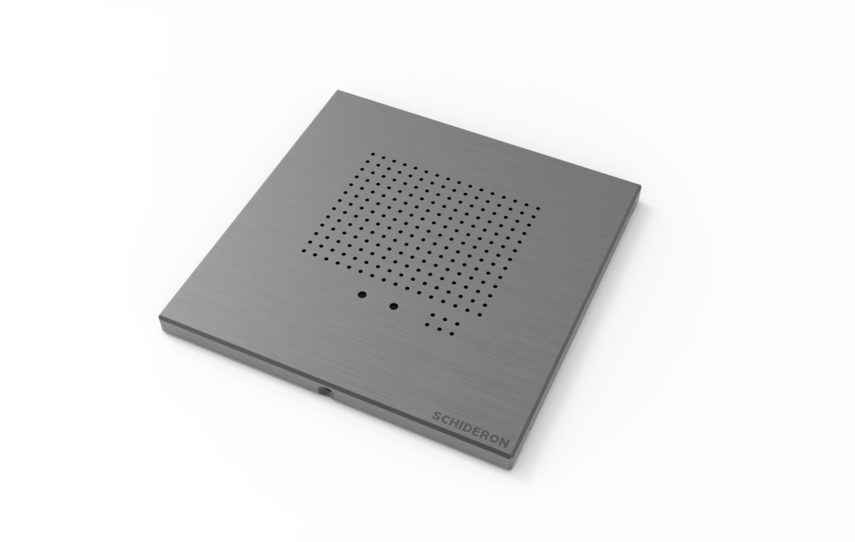

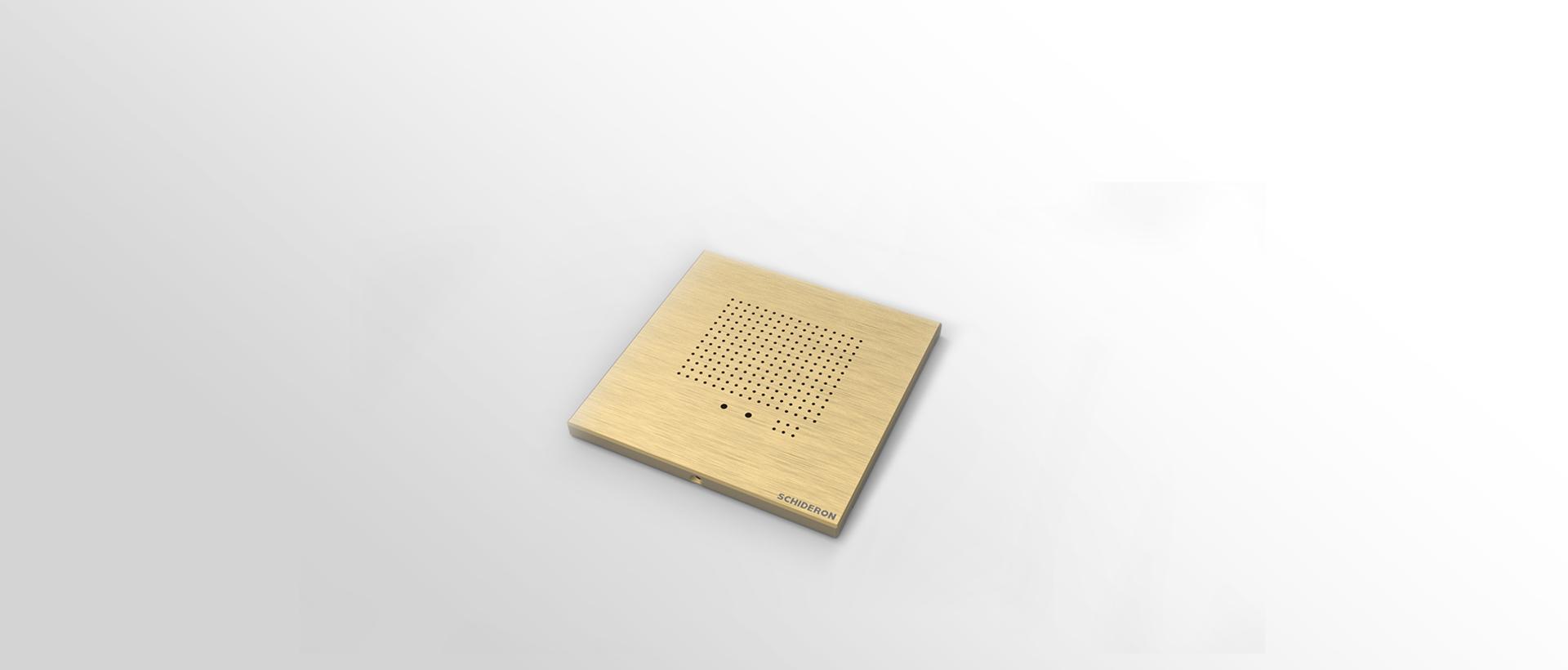

The SDR-PM2.5 intelligent environmental monitoring panel is a cost-effective standard intelligent monitoring panel solution from SCHIDERON. It has a highly configurable measuring system and is very easy to install in a standard 86 bottom box. Safe voltage SDR-PM2 .5 Smart Environment Monitoring Panel Equipment is easy to install on the wall as a complete intelligent monitoring system, and SCHIDERON offers a fully customizable monitoring solution.


Detector function integration

Five-in-one detector integration: temperature, humidity, PM2.5, PM1.0, PM10 in one; using Sharp's sensor detection unit, measurement accuracy.

Energy saving mode

The device is powered by a wide voltage range of 9 to 24 VDC with ultra-low power consumption. This design meets the needs of low carbon and environmental protection.

S-Net Bus communication

Dedicated 485 communication circuit ensures the stability and reliability of data transmission.

The installation method is simple and universa

The single-sided panel is mounted on a standard dedicated 86 back box to make the panels more neatly installed.


PM accuracy : ±5% PM Range : 0-999ug/3m HUM accuracy : ±3%RH

HUM range : 0-100%RH TEM accuracy : ±0.3℃ TEM range : -40℃-80℃

Border materials : Aluminum alloy material Voltage : 9-24VDC Newsletter : RS485 or TCP/IP

Temperature : -10°to 50°C Installation : Dedicated box

Parameter File - Panel - Mars Series

SDR-PM2.5(Simplified Chinese) 2018 / 06 / 15 631.04K

SDR-PM2.5(Traditional Chinese) 2018 / 07 / 19 661.07K
