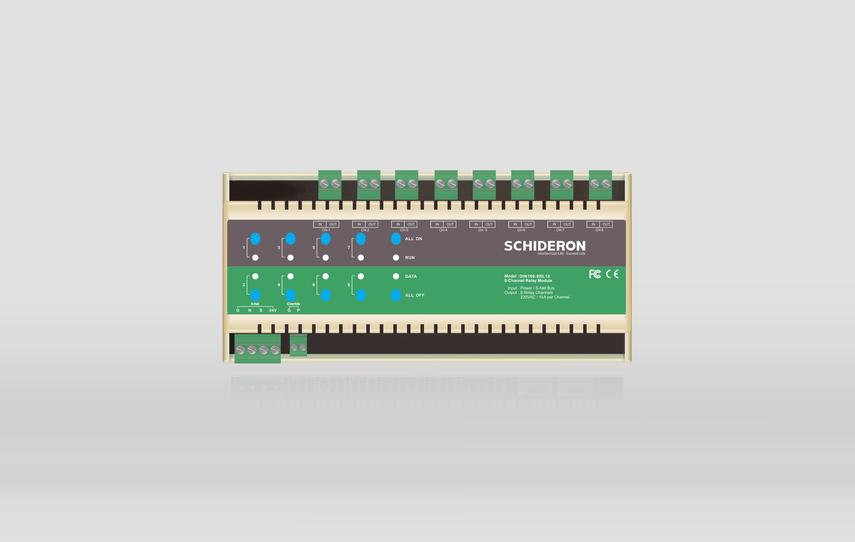

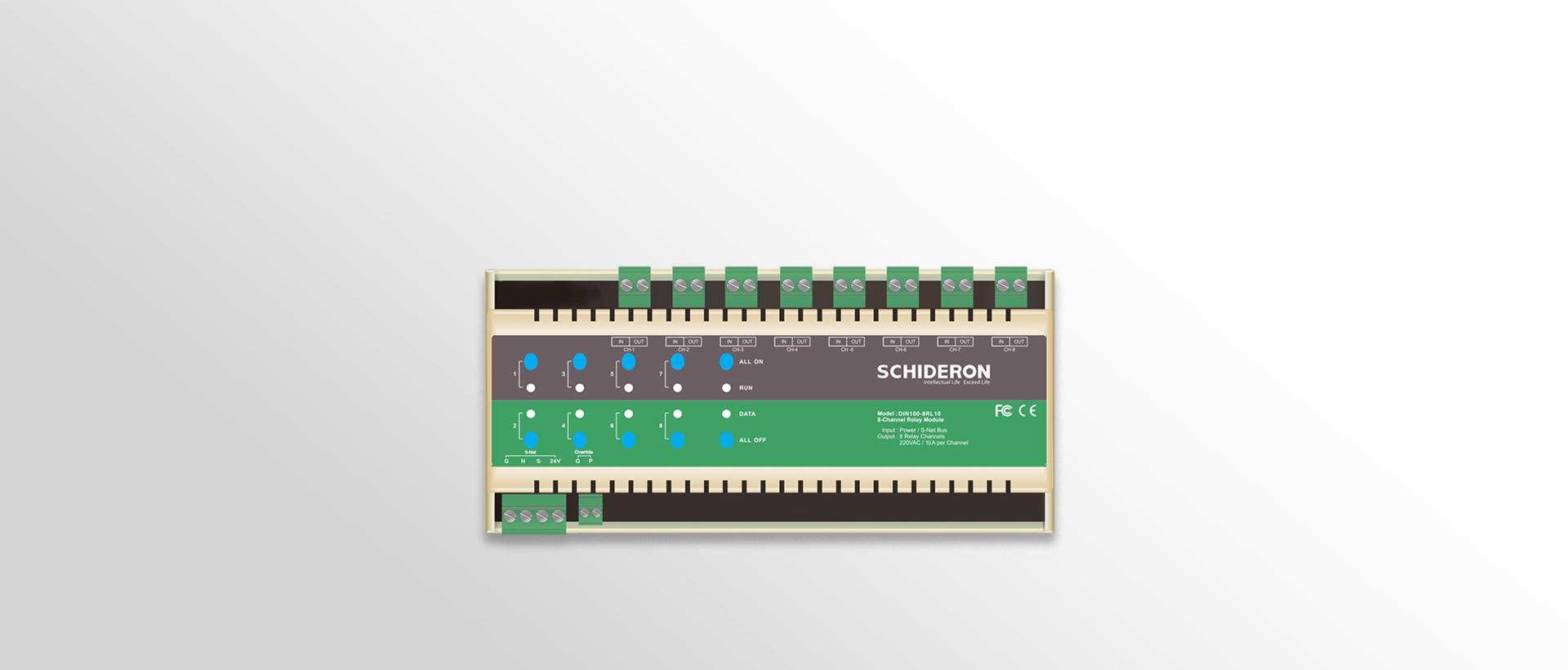

8-way 10A relay switch module (DIN100-8RL10) is an 8-channel relay control device for 120VAC to 240VAC for incandescent, fluorescent, neon/cold cathode, etc., 8 independent input/output isolation channels and 8 The emergency switch button allows manual switching of the circuit without bus devices and software. Each channel allows 10A resistive load current, or inductive load current of 5A, and supports electric curtain control and fan control.

DETAILS

Fire contact

The device has an Override emergency dry contact port (PANIC - GND) for fire emergency applications. When receiving the fire signal from the fire control center, the device will preferentially open the first loop as an emergency lighting circuit according to the signal.

Isolated input/output channels

Eight independent input/output channels form a one-to-one loop. The control of each channel loop can be configured via software, each channel has an independent transient surge protection circuit, surge protection up to 220V 16A. Each channel allows 10A resistive load current or 5A inductive load current, and supports control of electric curtain motors.

Centralized control

he module can be managed visually and centrally through SCHIDERON Intelligent Lighting Management System (LMS). The data of each channel in the module can be uploaded into the intelligent lighting management system for module data management and status analysis. Scene management is to pre-set the time for the module through the LMS, and then open the corresponding scene mode, to open all or part of the module loop.

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the dedicated bus S-Net to ensure the stability and reliability of data transmission. Each device has a corresponding physical address. The DIP dialer can be used to set the device's address to ensure that each module can operate correctly and accurately receive and execute commands transmitted from S-Net.

SPEC

Agreement type : S-Net Control channel : 8 channels, 10A Channel : 120-240VAC,50/60Hz

Placeholder : 10P DIN module space(180mm) Load type : Incandescent, fluorescent, neon/cold tube Radiat : 11.5BTU/hr

Consumption : 24VDC / 140mA,3.36W Terminals : PA66, UL94-V0, high temperature resistance Temperature : 0°to 40°C

Storage TEM : 0°to 40°C Material : Environmental protection fire ABS, UL94-V0, temperature resistance Humidity : 10% to 90%

Installation : DIN rail mounting Size : 180*87*63(mm)

Module Installation Instructions - Home Improvement Module Series

DIN100-8RL10-Simplified 2018 / 06 / 28 783.17K

DIN100-8RL10-Traditional 2019 / 05 / 28 278.42K

Parameter File - Home Module Series

DIN100-8RL10(Simplified Chinese) 2018 / 06 / 15 1.00M

DIN100-8RL10(Traditional Chinese) 2018 / 07 / 19 1.05M
