FEATURES

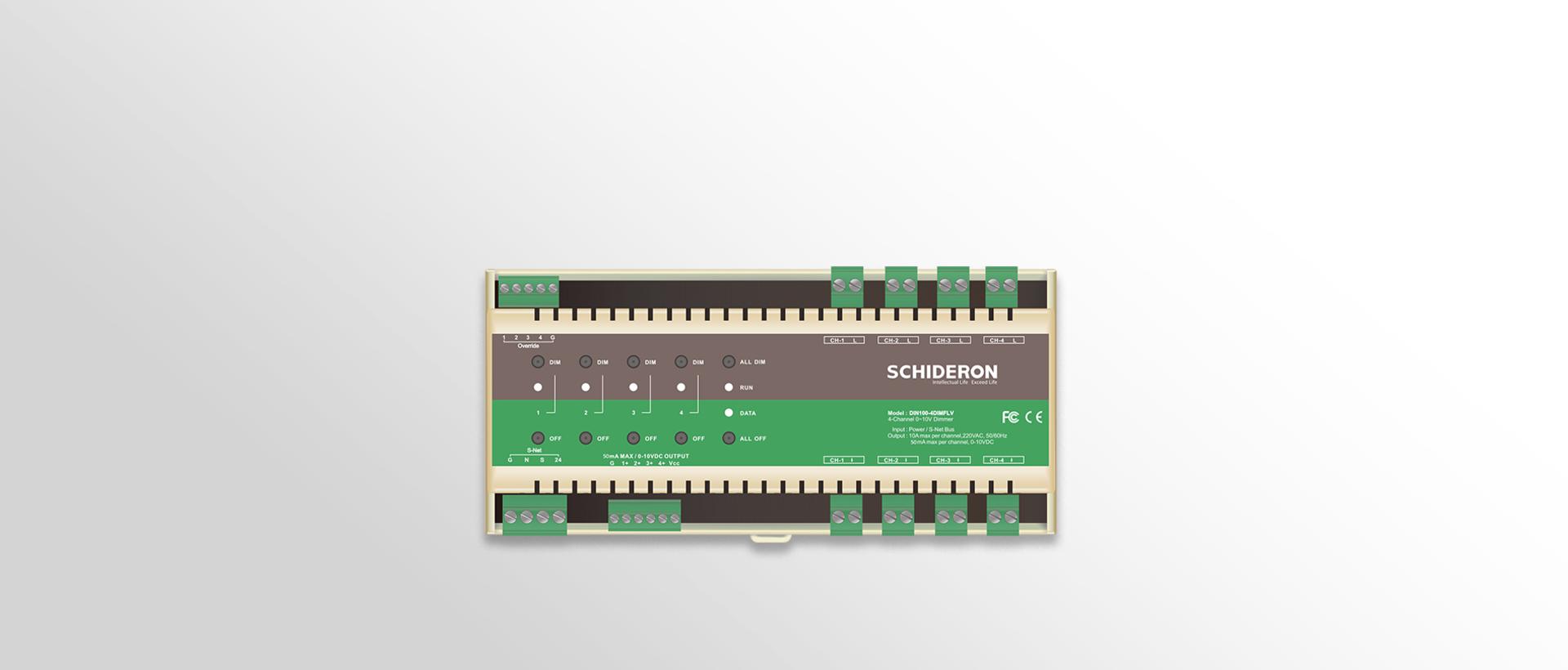

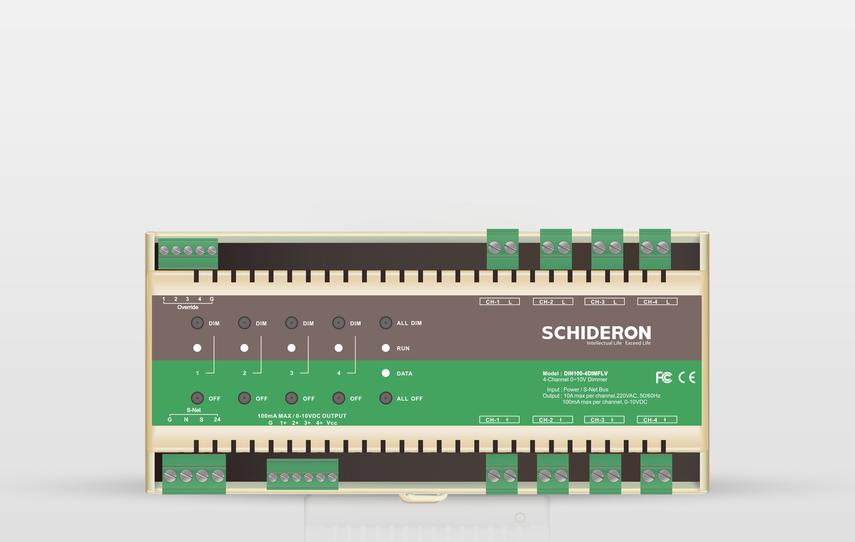

DIN100-4DIMFLV is a 4-way 0~10VDC dimming module used in smart home systems, room management systems, and intelligent lighting systems. It is one of the devices for adjusting the light level of illumination using LED lamps and fluorescent lamps that are widely used in the current market. The device achieves 0%-100% non-level dimming for LED lamps and fluorescent lamps at an analog level of 0 to 10V, and each output current is 50mA. Each channel comes with a relay that can withstand up to 16A surge current.

DETAILS

Isolated input/output channels

Four independent input/output channels form a one-to-one loop. The control of each channel loop can be configured via software. The start DC signal range can be set via software. Each channel comes with a relay.

Centralized control

The module can be managed visually and centrally through SCHIDERON Intelligent Lighting Management System (LMS). The data of each channel in the module can be uploaded into the intelligent lighting management system for module data management and status analysis. Scene management is to pre-set the time for the module through the LMS, and then open the corresponding scene mode, to open all or part of the module loop.

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.

SPEC

Agreement type : S-Net Control channel : 0~10VDC signal, maximum output 50mA per channel Load type : 0-10V fluorescent light dimming and LED dimming

Radiat : 11.5BTU/hr Consumption : 24VDC / 140mA,3.36W Terminals : A66, UL94-V0, high temperature resistance

Temperature : 0°to 40°C Storage TEM : 0°to 40°C Material : Environmental protection fire ABS, UL94-V0, temperature resistance

Humidity : 10% to 90% Installation : DIN rail mounting Size : 180*87*63(mm)

Module Installation Instructions - Home Improvement Module Series

DIN100-4DIMFLV-Simplified 2018 / 06 / 28 698.10K

Parameter File - Home Module Series

DIN100-4DIMFLV(Simplified Chinese) 2018 / 06 / 15 1.00M

DIN100-4DIMFLV(Traditional Chinese) 2018 / 07 / 19 1.08M
