The module has powerful protocol conversion capability, and realizes the conversion of S-Net communication and third-party system 485 communication through a special network interface and a third-party protocol. Enhance the scalability and centralized control of the control system. The module supports docking to control third-party wind panels or air conditioning systems.
The unit is equipped with an Override emergency dry contact port (PANIC — GND) for fire emergency situations. When receiving fire from the fire control center When the signal is signaled, the device will preferentially turn on the first loop as an emergency lighting loop according to the signal.
Isolated input/output channels
The module operates at a 24VDC safe voltage. The 16-way relay switch has independent input/output channels to form a one-to-one loop. Each channel loop control can be configured via software with independent transients per channel Surge protection circuit, surge protection up to 25A. The standard resistive load current per channel is 16A, the inductive load current is 8A, and it supports the control of the electric curtain motor. SCR dimming 2 channel input, 2 channel output. The control of each channel loop can be configured via software. Single channel with a maximum load current of 2A, module All circuits can withstand a total load current of 4A.
The module can be visually and centrally managed by SCHIDERON Intelligent Lighting Management System (LMS), and the data of each channel in the module can be uploaded to the wisdom. In the lighting management system, it is used for the analysis of module data management and status. Scene management is to preset the time of the module through the LMS, and then open the relative In the scene mode, all or part of the module loop is turned on.
DIN rail mounting
Flexible installation and application of “modular” equipment In real-world environments, the system is mounted on standard 35mm DIN rails for easy installation and maintenance. For the user to use.
S-Net bus modular design
The module is designed for MCU pure hardware architecture, with local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. Module via dedicated The bus communicates to ensure the stability and reliability of data transmission. Each module has a corresponding physical address, which can be used to perform the module ground through the DIP dialer. The address setting ensures that each module can operate correctly and can accurately receive and execute commands transmitted from the bus.
Relay cutoff and output limit
The module dimming circuit has its own relay cut-off to ensure that there is no leakage of the thyristor after the circuit is closed, which causes the lamp to flicker. And can be started by software settings The minimum voltage and the range of the highest voltage output.
Zero crossing detection
The module dimming circuit has a single-phase zero-crossing detection circuit, and the proprietary zero-crossing filter technology allows each open/close action of the module relay to be at a frequency. The zero crossings extend the life of the unit, reduce the flicker of the lighting fixture, and compensate for fluctuations in the voltage and frequency of the circuit.
Control channel : Dimming up to 2A per channel Channel : 100~230VAC 50/60Hz Placeholder : 15P DIN module space (270mm)
NET protocol : S-Net Consumption : 24VDC / 300 mA DC Terminals : PA66
Supply voltage : 24VDC Weight : 936.9g Temperature : 32°to 104°F (0°to 40°C)
Storage TEM : 0 ℃ ~40 ℃ Material : ABS Humidity : 10%~90% RH
Installation : DIN rail mounting Size : 270*93*63.5mm

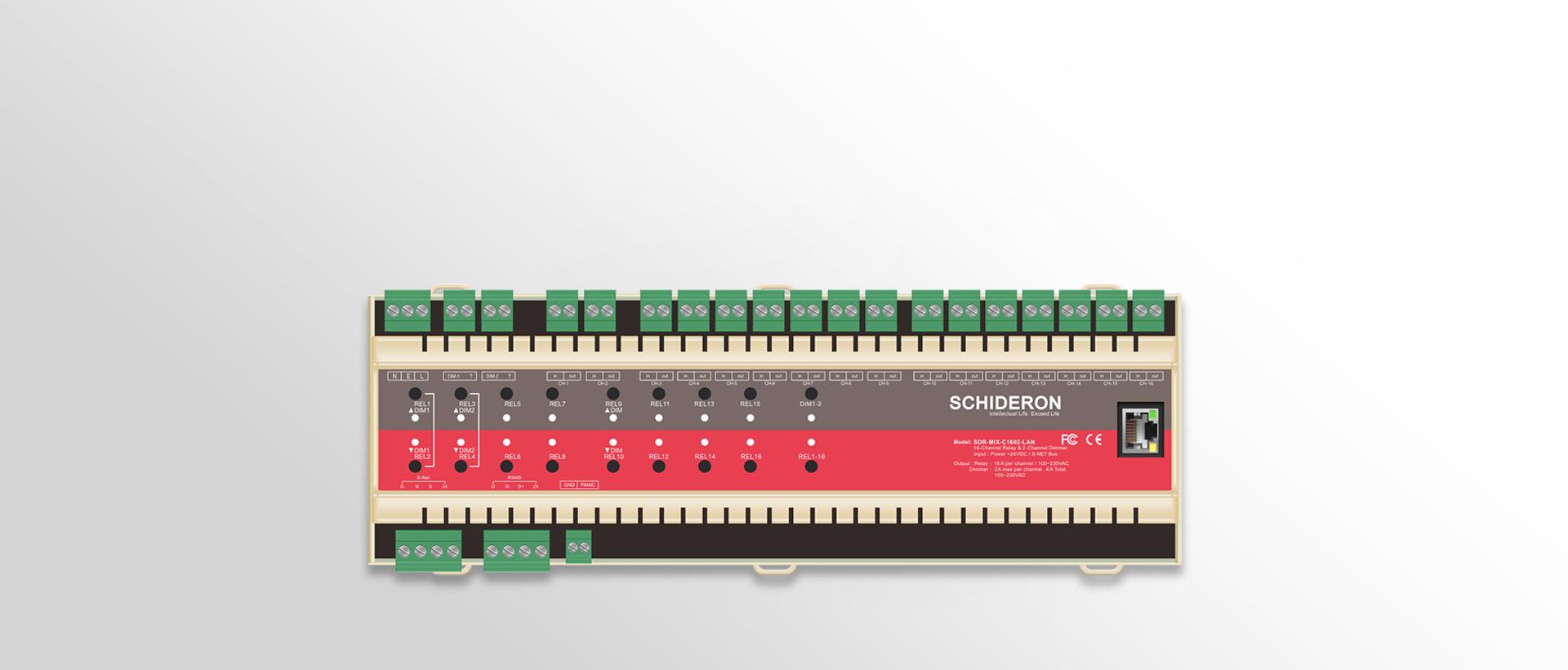

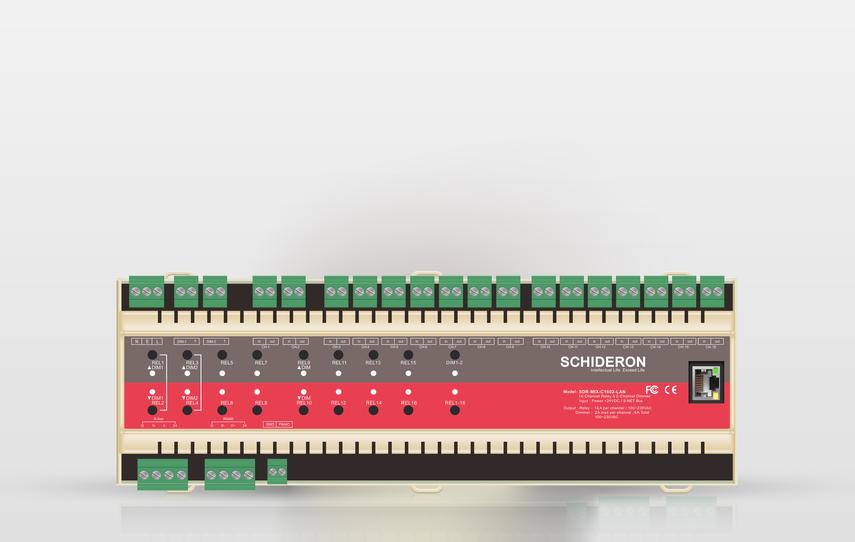

The SDR-MIX-1602-LAN is a 16-channel relay + 2-channel TRIAC dimming + LAN module. package Includes 20 manual emergency buttons: 4 for 2-way 2A thyristor dimming; 16 for 16 16A relay switches. 16-way 16A relay switch for 110VAC~230VAC for incandescent, fluorescent, neon/cold cathode tubes, etc. Dimmable lighting fixture switch and fan control, 16 independent input/output isolation channels, allowing for no other total Manual switching circuit in the case of line equipment and software. Each channel has a resistive load current of 16A and an inductive load current of 8A. And support the control of electric curtain motor. 2-way 2A controllable silicon dimming is used for front-cut phase electronic low-voltage lamps ELV, incandescent lamps INC, neon/cold cathode tubes Neon/CC, electromagnetic low-voltage lamps MLV and other lighting fixtures perform leading-edge phase dimming control. Each channel data can be uploaded to the work The center is used for graphical statistics. The maximum load current of a single channel is 2A, and all modules of the module can withstand the total load. The current is 4A. Loop independent control, pre-edited scene control and scenes through intelligent lighting management system (LMS) visualization Timing control, module data can be uploaded to the intelligent lighting management system (LMS) for module status management and data statistics Analysis, the entire data transmission and equipment control meet the latest industry industry standards. The module can provide network interface and protocol to interface with third-party centralized control system, and support control on S-Net bus. SCHIDERON equipment with standard 485 bus equipment.
SDR-MIX-C1602-LAN- Simplified 2019 / 05 / 28 390.77K
SDR-MIX-C1602-LAN- Traditional 2019 / 05 / 28 340.83K
