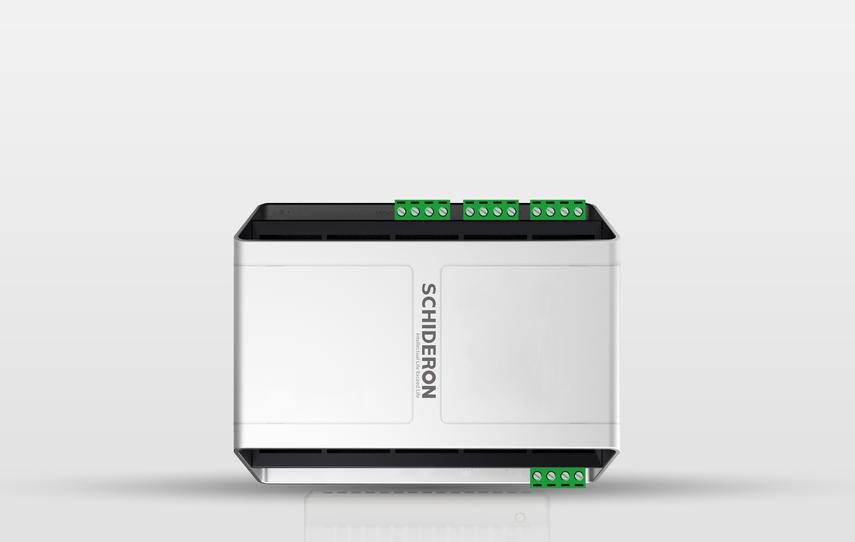

DIN75-HUB is an application developed by SCHIDERON to expand the number of devices on the intelligent system to make the entire system a large control network.


Main function introduction

1. To expand the network, when the number of devices on the bus exceeds 32, the maximum allowable control on the DIN75-HUB extension bus is required Equipment Quantity. Each DIN75-HUB can expand 32 modules. 2. Extend the length of the S-net bus. When the length of the S-net bus exceeds 400 meters, a DIN75-HUB module needs to be added to the bus. Length extension. Each DIN75-HUB can extend 400 meters. 3. Extend the star-type chain bus model to a bus topology.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from S-Net.

Simple and universal installation

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.


Agreement type : S-Net Consumption : 0.24W Voltage : 24VDC / 10mA

TER explain : PA66, UL94-V0, high temperature resistance Temperature : 0°to 40°C Storage TEM : 0℃~40℃

Material : Environmental protection fire ABS, UL94-V0, temperature resistance Humidity : 10% to 90% RESET : RESET

Installation : DIN rail mounting Size : 135*103*55(mm)

Module Installation Instructions - Home Improvement Module Series

DIN75-HUB-Simplified 2018 / 06 / 28 625.98K

Parameter File - Home Module Series

DIN75-HUB(Simplified Chinese) 2018 / 06 / 15 931.38K

DIN75-HUB(Traditional Chinese) 2018 / 07 / 19 968.61K
