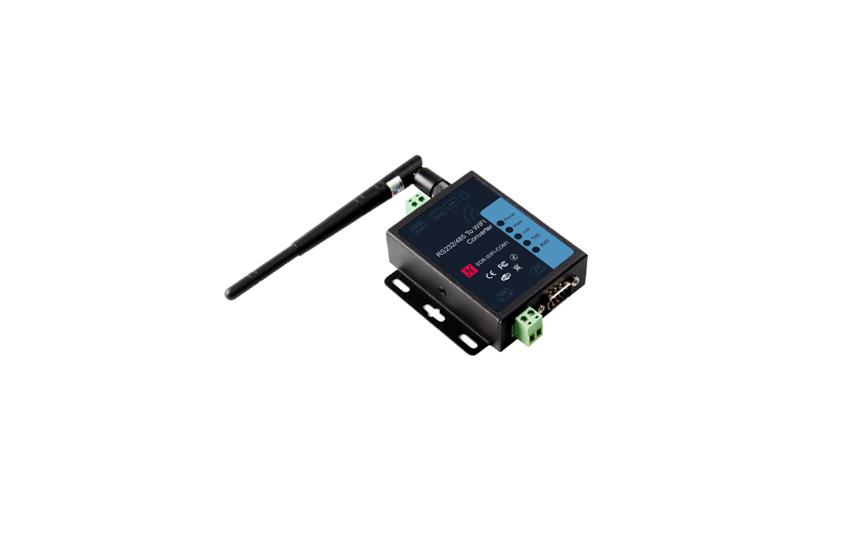

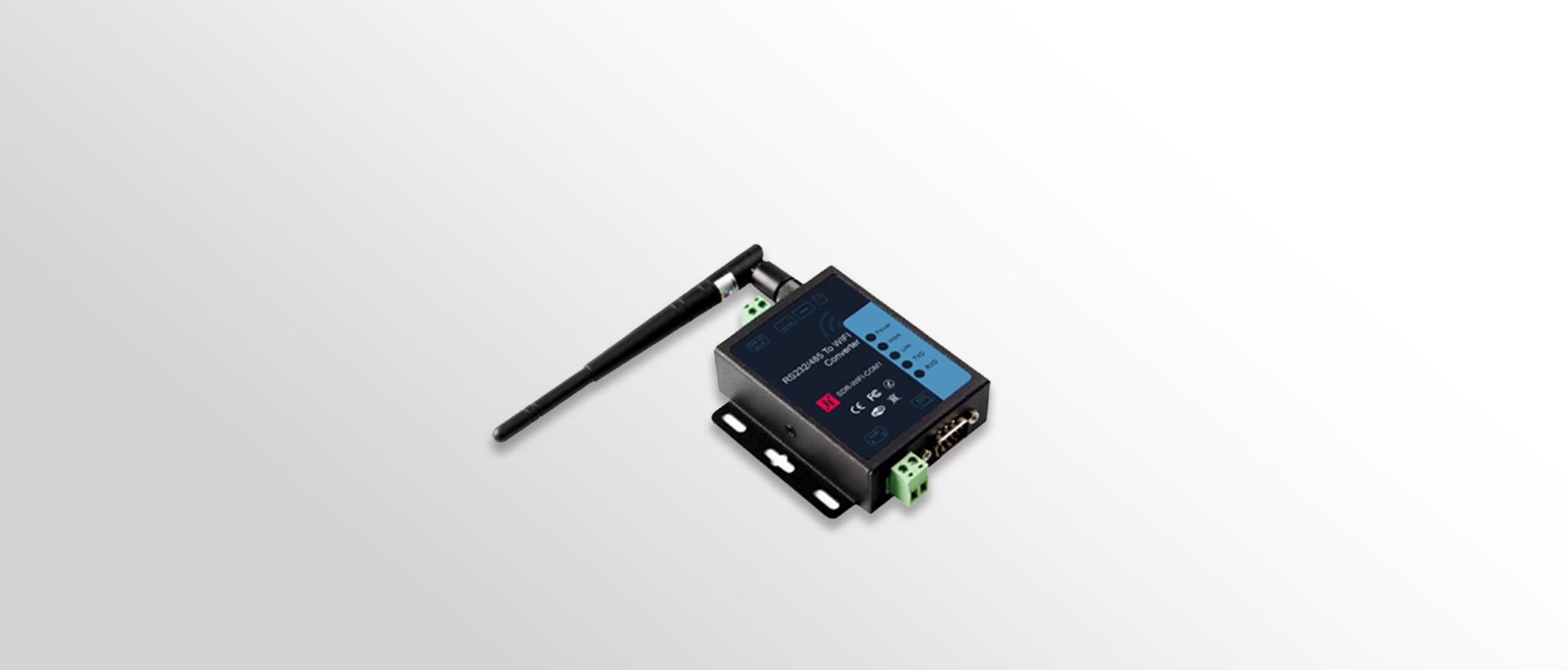

SDR-WIFI-COM1 is one of the media devices that SCHIDERON provides wireless expansion intelligent lighting system, smart home system, room control system and communication mode conversion. The serial port to wireless TCP/UDP transmission function integrated in the device can connect the control device to the control system through the wireless network, providing a free and flexible way for system expansion and device control access. The entire data transmission and device control are in line with the latest industry industry standards. The device network connection supports WiFi@2.4GHz 802.11b/g/n wireless standard; the serial port supports RS232/485, and provides multiple serial port baud rates to choose from. The device has electrostatic protection capability in terms of safety, and adopts power supply anti-reverse connection and anti-surge design.


Communication conversion

SDR-WIFI-COM1 integrates serial port to wireless TCP/UDP transmission function, and converts RS485/232 serial port data and wireless network message to each other.

System expansion

SDR-WIFI-COM1 enables non-networking devices to gain access to the network, thereby greatly expanding the control system through network media, making the deployment of devices that are relatively unsuitable for wired cabling areas easier.

Centralized control of APP

The SDR-WIFI-COM1 network interacts with the SCHIDERON central control host. The control data of the device connected to the serial port is sent by the central control host. The status data is uploaded to the central control host to implement centralized control of the device. Cloud control is also supported through the central control panel.


Antenna : External SMA antenna Agreement type : RS-485/RS-232 Power : 24VDC

Terminals : PA66 Baud rate : Support multiple specifications Temperature : -20~85℃

Operating HUM : 5%~95% RH Storage TEM : -40~125℃ Material : metal shell

Humidity : 5%~95% RH Installation : Screw fixing Size : 85.9*82.5*25mm

Parameter file - control module series

SDR-WIFI-COM1-Simplified 2019 / 04 / 16 1.02M

SDR-WIFI-COM1-Traditional 2019 / 04 / 16 1.06M
