FEATURES

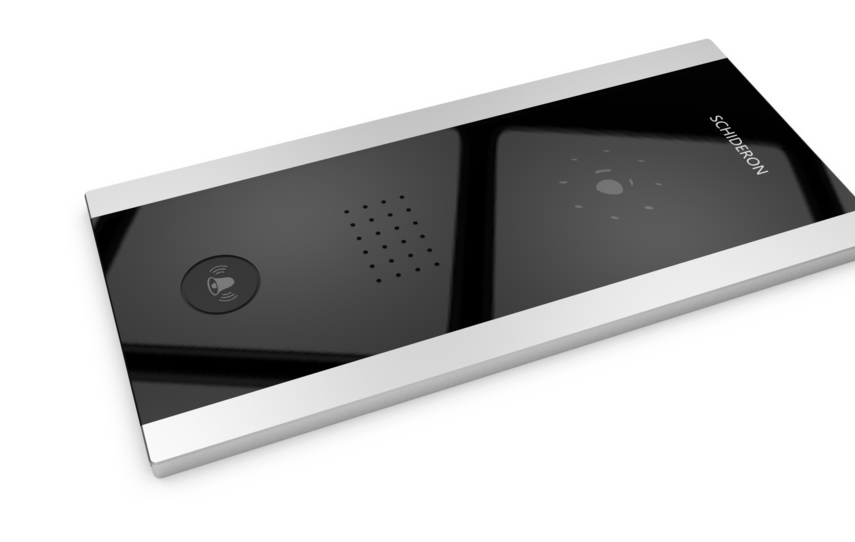

DDT-006C-HD-X1S adopts SCHIDERON X1S series CPU chip, the CPU frequency is 720MHZ, and the memory is DDR3/256M. It has the advantages of fast operation speed, high quality of intercom audio and video, low power consumption of the whole chip and high running stability to meet the needs of future upgrades. High-definition digital camera with clear camera quality. The new noise suppression technology can achieve high-reduced sound quality in different environments. The appearance of the craft is high quality and generous and high-grade. One-touch call indoor extension, simple and clear operation instructions make the user easy to use. Overall performance and technical indicators are at the leading level in the industry.

DETAILS

Main function introduction

·Aluminum alloy explosion proof appearance ·Photography function · Call indoor unit to achieve secondary confirmation / intercom ·Indoor monitoring, management center monitoring ·High-definition camera, night LED fill light · Built-in IC access control module, support for card unlocking · Authorized card issuance through the management center ·After pressing the doorbell button for 3 seconds, the card can be disarmed and disarmed. ·Support normally open / normally closed type electronic lock access

SPEC

System : WinCE NET protocol : TCP / IP Bus : S-Net

CPU : X1S Power : DC 12V Working current : ≤180mA

Current : ≤150mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : ABS+ Aluminum Webcam : 1.3 million pixels Ringing : Bell≥70dB

Frequency : 720M Hz RAM : 256M DDR-Ⅲ ROM : 4GB Nand Flash

Installation : Embedded Thickness : 7mm Size : 106*224*37(mm)

Dust proof : IP55

Parameter file - outdoor door intercom

DDT-006C-HD-X1S(Simplified Chinese) 2018 / 06 / 15 3.38M

DDT-006C-HD-X1S(Traditional Chinese) 2018 / 07 / 19 3.32M

Installation instructions - visual intercom

DDT - 006HD-Simplified 2019 / 06 / 03 3.20M

DDT-006HD-Traditional 2019 / 06 / 03 810.03K
