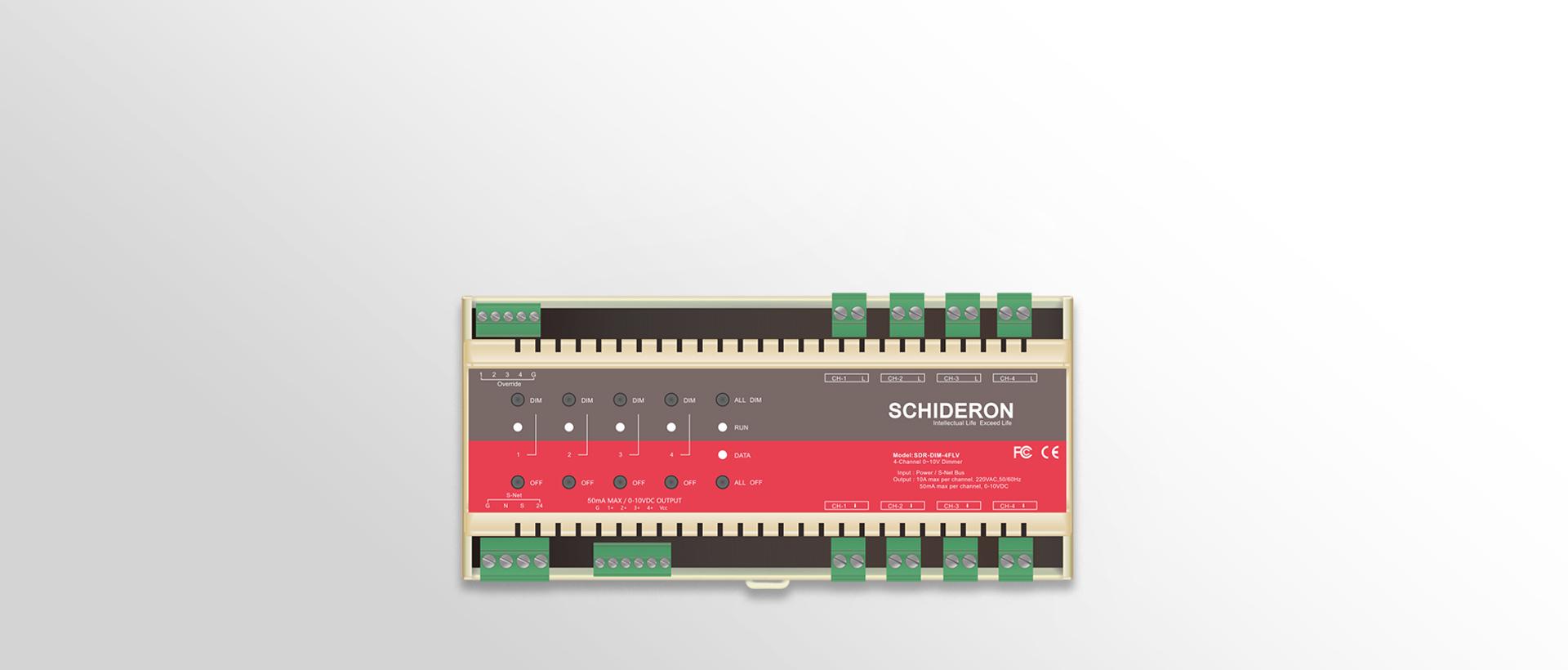

HRMS-DIM-4FLV is a 4-way 0~10VDC dimming module used in smart home systems, room management systems, and intelligent lighting systems. It is one of the devices that can be used to adjust the lightness of a wide range of LED lights and fluorescent lamps. The device achieves 0%-100% non-level dimming for LED lamps and fluorescent lamps at an analog level of 0 to 10V, and each output current is 50mA. Each channel comes with a relay that can withstand up to 16A surge current.
Isolated input/output channels
Four independent input/output channels form a one-to-one loop. The control of each channel loop can be configured via software. The start DC signal range can be set via software. Each channel comes with a relay.
Centralized control
The module can be managed visually and centrally by SCHIDERON Intelligent Lighting Management System (LMS). The data of each channel in the module can be uploaded to the intelligent lighting management system for module data management and status analysis. Scene management is to pre-set the time for the module through the LMS, and then open the corresponding scene mode, to open all or part of the module loop.
DIN rail mounting
“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.
S-Net bus modular design
The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.
Agreement type : S-Net Control channel : 0~10VDC , maximum output 50mA per channel Channel : 4 way relay channel
Placeholder : 10P DIN module space（180mm） Weight : 356.0g Temperature : 0°to 40°C
Storage TEM : 0°to 40°C Humidity : 10% to 90% Installation : DIN rail mounting
Size : 180*87*63(mm)
