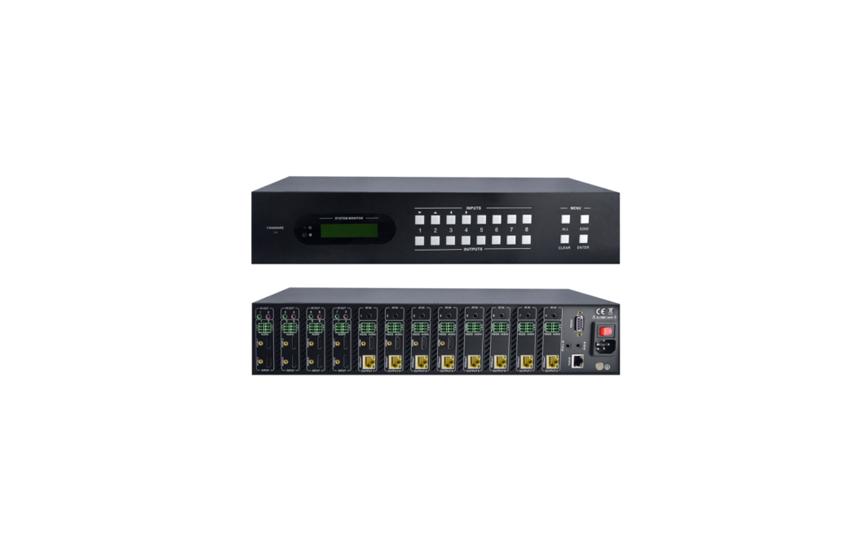

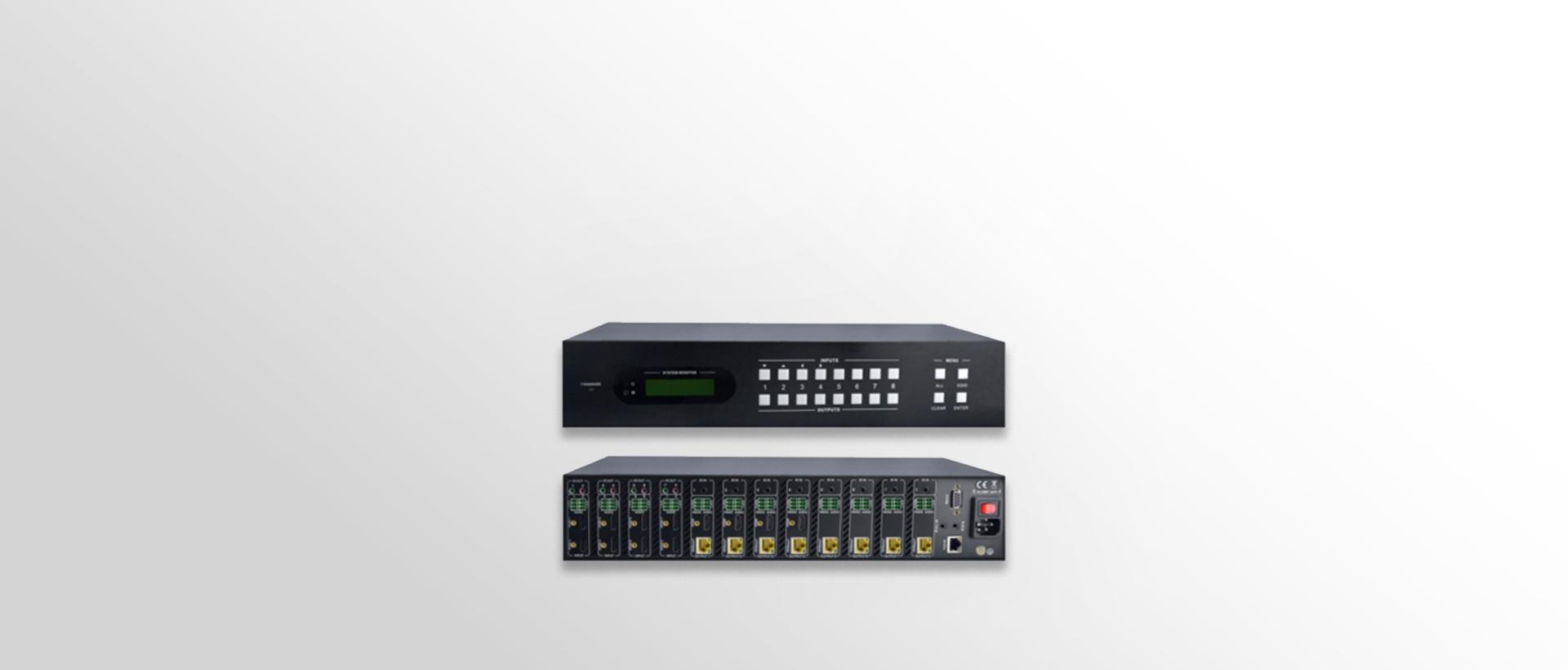

This product is a matrix switcher with integrated HDBaseT technology. The input signals supported are: 8 HDMI inputs, 8 audio inputs, and 8 IR inputs. The supported output signals are: 8 channels of HDBaseT output, 4 channels of local HDMI loop out, 8 channels of IR signal output, and 8 channels of audio output. The video signal resolution supports 4Kx2K, and the audio input and output ports can select embedded audio or external audio by command. This product supports EDID learning and manual control management functions, and can realize bidirectional IR and RS232 communication control with the remote end. Product control methods are flexible and flexible, and can be controlled by supporting remote control, front panel button control, infrared control, RS232 serial port control, GUI graphical user interface control.
Convenient firmware upgrade
Support USB online firmware upgrade and GUI graphical user interface upgrade.
Automatic identification of multiple resolutions
Support 1080P, 4Kx2K resolution video access automatic identification.
Rich signal port
8x4 HDMI port, 8x8 IR port, 8x8 audio port, 8 HDBaseT output ports (PoC support).
HDBaseT transmission standard
Support HDBaseT transmission standard, support PoC function, with long-distance transmission, high transmission rate and cable economy advantage over HDMI.
Long-distance transmission capability
Thanks to the blessing of the HDBaseT transmission standard, the maximum distance of a single CAT5e HDBaseT 1080P signal is 70m, and the maximum distance of a 4Kx2K signal is 40m.
Flexible audio processing
The audio port can be used to select external audio or embedded audio.
Powerful compatibility
Support HDMI 1.4, support 4Kx2K, and support 3D signals, compatible with HDCP 1.4 standard.
Diverse and flexible control methods
Support button panel control, RS232 control protocol, two-way infrared transmission and reception, TCP/IP computer GUI graphics management.
Serial port : 9 - RS232 Transmission standard : HDBaseT Infrared control : IR Receiver / Extended
Hot plug : Support HDBaseT, HDMI Protocol processing : EDID management HDCP : auto / manual
Agreement type : TCP/IP Resolution : 1080P/4Kx2K/Auto Consumption : 103W
Power : AC100V~240V Weight : 5.4Kg Temperature : -10 ~ +40°C
Operating HUM : 10% ~ 90% Material : metal shell Carton size : 437*380*87.8mm
SDR-UHBT88-N 4K T HDBaseT Matrix Switcher
