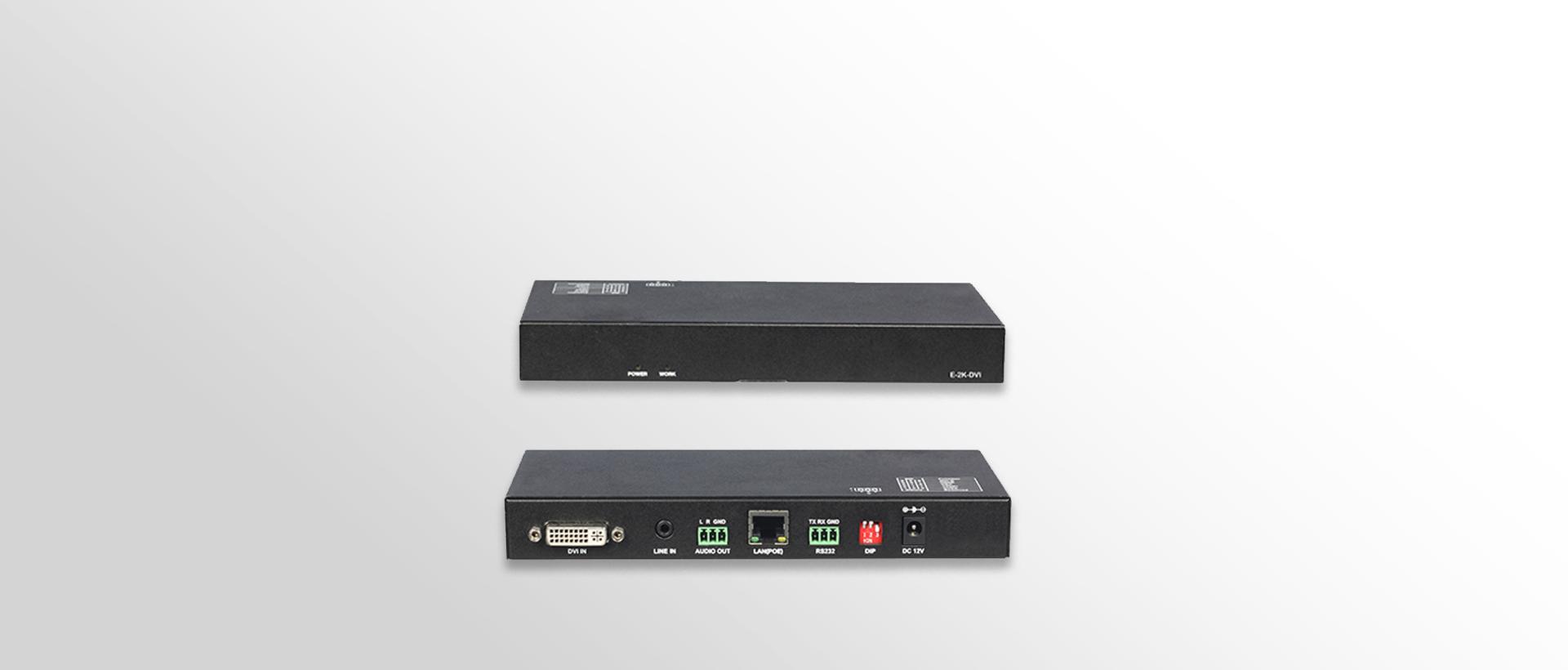

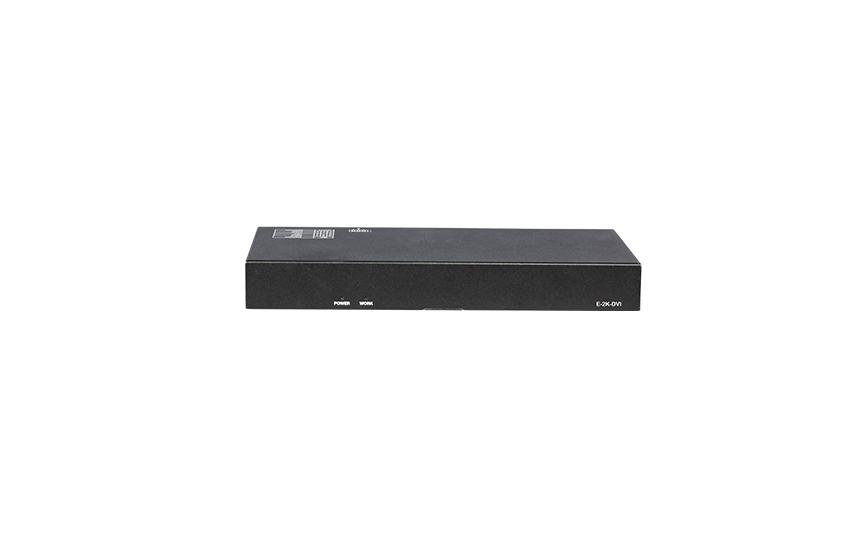

This product is a multi-format encoder of H.264, 1 channel DVI-I input interface, supports VGA+Audio, HDMI, CVBS, YPbPr, DVI five kinds of signal input; can transmit up to 1920x1200@60Hz video via Ethernet Signals are widely used in applications such as blue video transmission, video wall and multi-picture.
Flexible and compatible
With the decoder, it can realize matrix, splicing, windowing, superimposed roaming, multi-picture and other functions.
Seamless and fast switching ability
It can switch quickly and seamlessly, without black screen, no flashing eyes, no painful switching.
HD video transmission capability
It can transmit video signals up to 1920x1200@60Hz via Ethernet.
Powerful compatibility
Support Ethernet, RS232 control protocol and dial switch....
Diverse and flexible control methods
Support Ethernet, RS232 control protocol and dial switch.
Transport stream : H.264/MPEG-4 AVC Serial port : RS232 Signal to noise ratio : >90dB
Protocol processing : CEC Resolution : Up to 1920x1200@60Hz Consumption : 5.76W
Power : DC12V 0.48A, POE Temperature : -20 ~ +45°C Operating HUM : 10% ~ 90%
Material : metal shell Size : 210*94*44.5mm
