SMART-CORE-2D is a DIN rail installation intelligent central control system developed by SCHIDERON and can be applied to any modern intelligent home and commercial intelligent control central control system. The whole system can customize ...

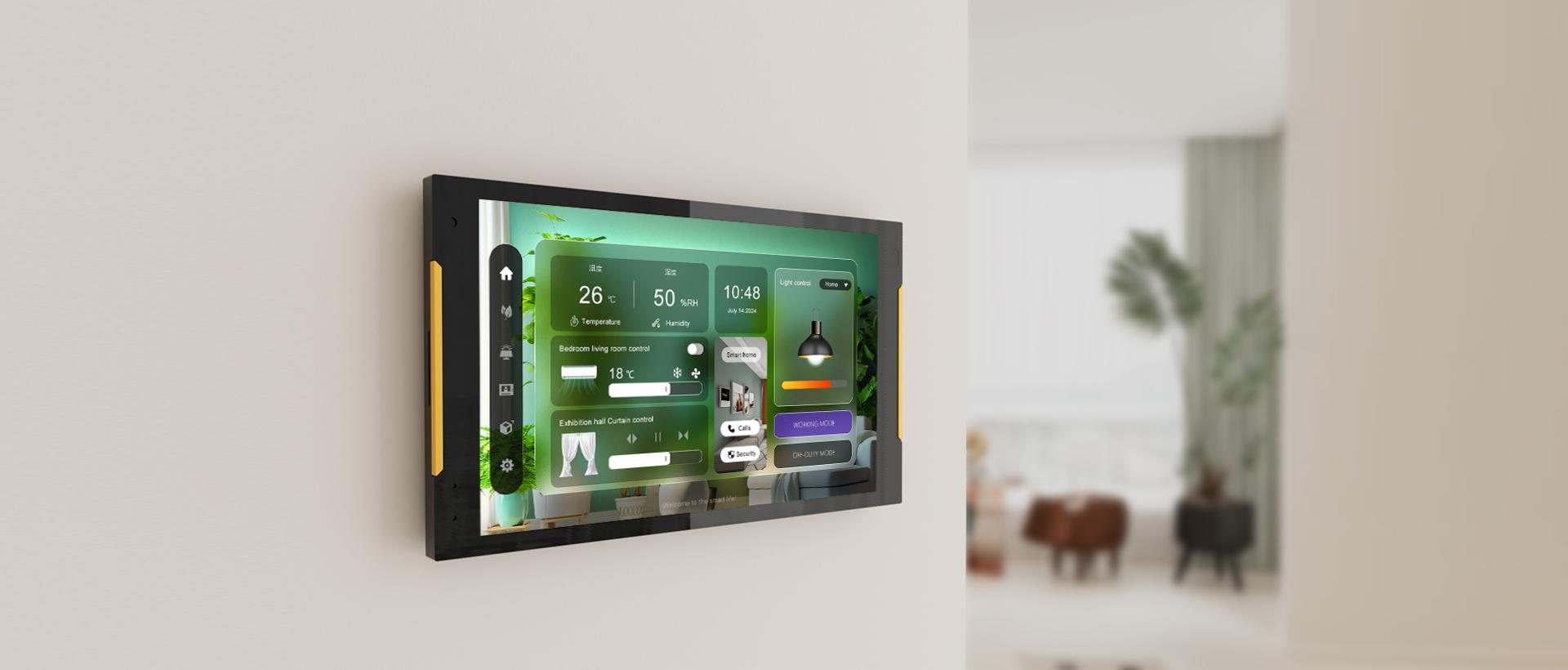

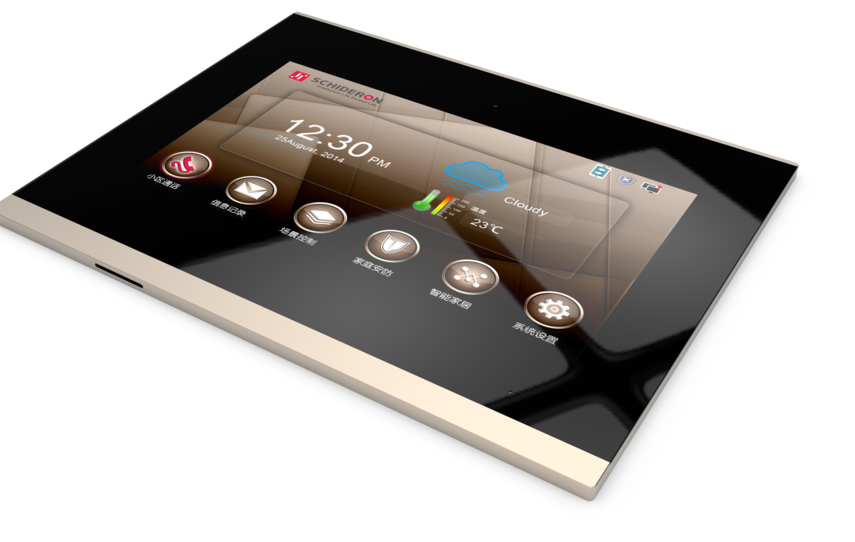

The DDP-1005N-S is a wall-mounted color hands-free video intercom indoor phone with multiple functions. It adopts a 10.1-inch LCD display with an aluminum frame and a resolution of 1024×600. Using a capacitive touch screen, the video codec uses H.264 to support high-definition two-way video intercom. The chip adopts SCHIDERON's X1S series CPU chip and WINCE 5.0 embedded system architecture. It has the advantages of fast operation speed, high stability and low overall power consumption, and supports online upgrade. Security features are comprehensive - the system comes with 8 independent zones (expandable to 16 zones), which can be connected to sensor devices such as intrusion, gas, and smoke. Automatic protection if the household is not at home Save visitors photos for customers to view at any time. An S-Net interface seamlessly interfaces with the SCHIDERON smart home mainframe and modules, and the warm home scene is activated by one finger.
Video intercom
· Wall machine incoming call · Unit door incoming call · Small doorway incoming call · Management center call / two-way dialogue · Two-way voice dialogue and video intercom · Unit door machine, small doorway monitor
Home Security
· Emergency help function · One-touch arming from home · Alarm information sent to the management center · Code alarm · Customized private unlock password, security password and password
Alarm Type
· Emergency button ·Smoke alarm · Gas leak alarm · Gate magnetic· Window magnetic field · Infrared double detector · Glass breakage · Prevention and dismantling alarm
Smart Home
· Scene Control · Air Conditioning Control · Lighting Control · Curtain Control
Other function
· Community information, private information push · Three languages (Simplified / Traditional / English)
Touch screen : Capacitive Border materials : Fireproof ABS Resolution : 1280*800
System : Android 10.0 NET protocol : TCP / IP Bus : S-Net
CPU : X20 Display : 10.1 Power : DC 12V
Working current : ≤280mA Current : ≤200mA Temperature : -10℃~+50 ℃
Operating HUM : 20%~85% Material : Aluminum alloy + ABS Ringing : Electronic bell ≥70dB
RAM : 2GB LPDDR4 ROM : 16M Size : 256*153*19.7（mm）
