Product parameters

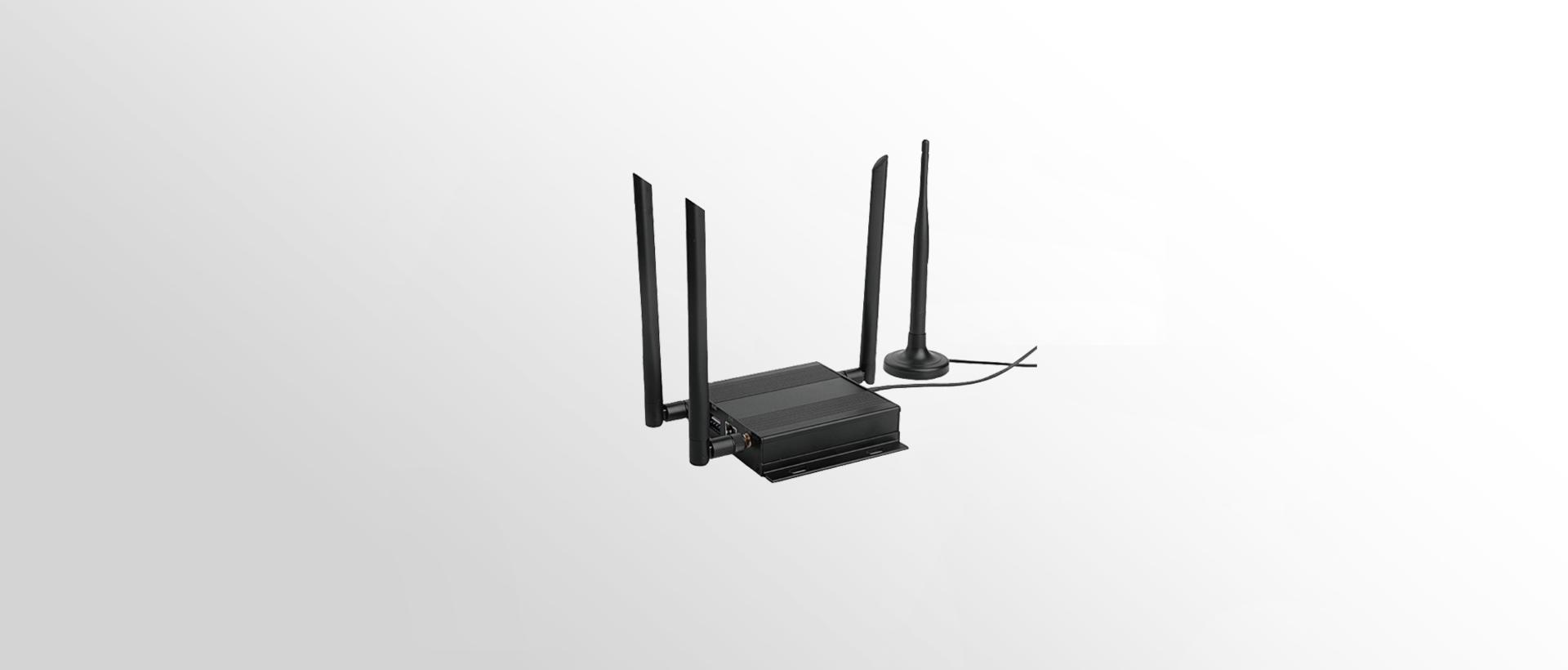

The intelligent engineering gateway UX18 is a BT/Zigbee multi-mode gateway that supports Wi-F ì, Ethernet, Bluetooth, and Zigbee communication. It is the core device of the BT/Zigbee network. BT or Zigbee devices join the network through gateways to communicate with other devices. When communicating with BT or Zigbee devices, the gateway is connected to the router via Wi Fi or Ethernet, and communicates with the cloud and mobile apps. Through the app, BT or Zigbee devices can be viewed and controlled. a) Control BT or Zigbee devices: Users can control BT or Zigbee sub devices through gateways and support remote control; b) Single key network: Short press the button on the gateway to enter the long network setting mode (the indicator light will flash slowly, indicating that sub devices are allowed to access), and continue for 1 hour. At this point, the sub device to be added is in network configuration state, and the device will be automatically added. Support the addition of multiple devices, simplify tedious network allocation steps, and make device network operations more user-friendly. To turn off single key network mode, simply press the button again briefly; (This function can be added when the gateway is activated and not activated) c) Cloud scene/automation: Through the scene and automation settings in the APP, Zigbee sub devices under BT or gateway can be used as execution or triggering conditions for connecting with other smart devices; d) Local scenario/automation: When executing scenarios/automation, the local machine is the preferred choice. Through this feature, even if the external network is disconnected, the smart scenarios/automation set by the user can still be efficiently executed. e) Support for Engineering Deployment: Support for engineering installation and deployment, local deployment of installation equipment can also be completed in on-site construction environments, and support for intelligent scene configuration. Users only need to configure gates to use.

SPEC

RTC support : Support Power off RTC Clock wan : 1 10/100M Ethernet port (RJ45 interface) GPIO : 6

UART : 1xDebug，1xData operating system : Linux 3.10 DDR : 64MB

Chip architecture : MIPS main frequency : 1GHz chip : RTL8197FS-VE4

Storage Humidity : 5%-90%RH FLASH : 32MB Power : 5V 2A

Temperature : -10℃～+45℃ Operating HUM : 10%-90%RH Storage TEM : -20℃～+60℃
