FEATURES

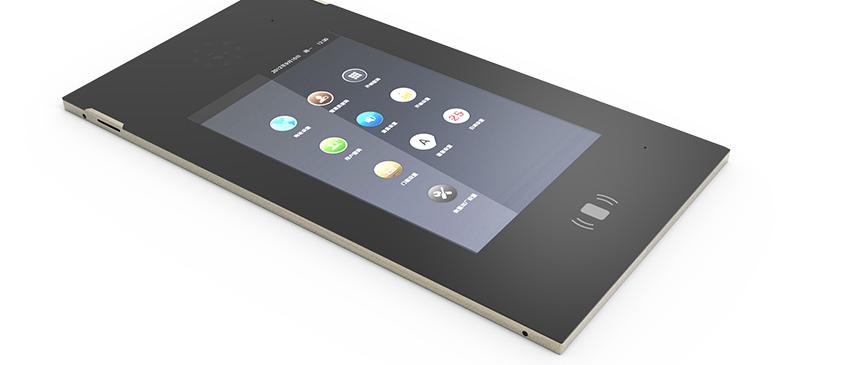

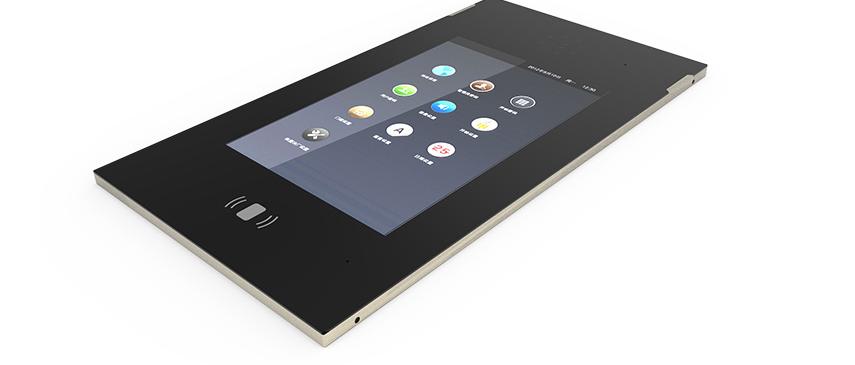

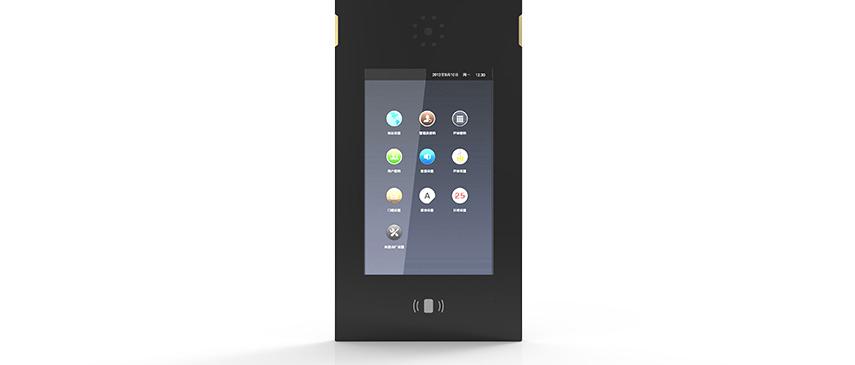

The DDT-1060-HD is a color video intercom unit with 10-inch capacitive touch screen operation. The resolution of the LCD display is up to 1280×800. High-definition digital camera, with a clear image quality. The new noise suppression technology can achieve high-reduced sound quality in different environments. This machine adopts SCHIDERON S2e series CPU chip, CPU frequency up to 720MHZ, memory is DDR3/256M. It has the advantages of fast operation speed, high quality of intercom audio and video, low overall chip power consumption, and high operational stability to meet the needs of future upgrades. The interface operation instructions are simple and easy to use. Supports public password unlocking, user private password unlocking, IC card door banned card unlocking, guest message leaving, call management center and other functions. The overall performance and technical indicators are at the leading level in the industry.

DETAILS

SPEC

System : WinCE NET protocol : TCP / IP Bus : S-Net

CPU : Schideron S3 Power : DC 12V Working current : ≤600mA

Current : ≤250mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : G+G glass + metal Webcam : 1.3 million pixels Ringing : Bell≥70dB

Frequency : 1.2G Hz RAM : 512M DDR-Ⅲ ROM : 4GB Nand Flash

Installation : Embedded Thickness : 9mm Size : 368*198*39（mm）

Dust proof : IP53
